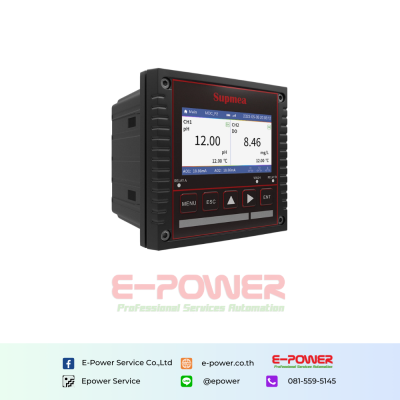

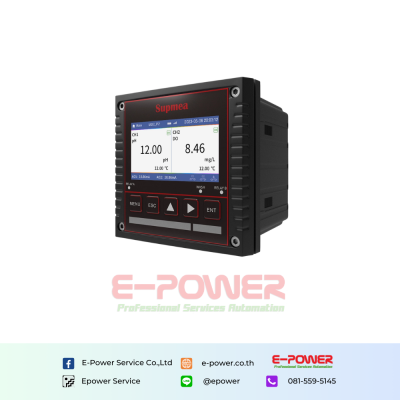

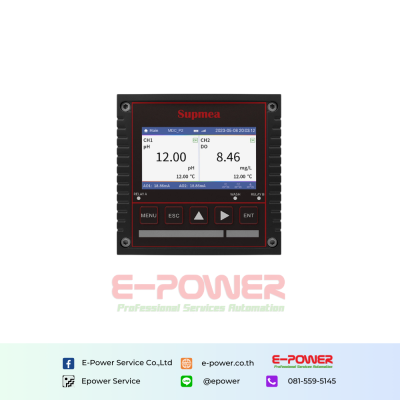

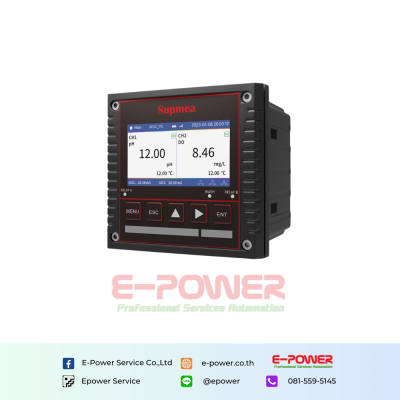

pH Controller SUP-DC-P2 Dual Channel Universal Controller

pH Controller SUP-DC-P2 Dual Channel Universal Controller

The MDC-P1/P2 is an advanced, intelligent online multi-parameter controller capable of supporting up to two channels. The first channel's hybrid mode allows for the connection of either analog or digital sensors, while the second channel connects digital sensors. This controller can measure a variety of parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, residual chlorine, ammonia nitrogen, nitrate nitrogen, COD, and more. Its continuous monitoring data can be transmitted to a DCS system via output transmission or communicated with a computer using the Modbus-RTU protocol via RS485 interface for remote monitoring and logging. It can also control cleaning systems or pumps.

Quantity

Categories : Sensor , Liquid analysis , pH sensor and meter

Brands :Supmea

Product Details

Download

Characteristics

Measuring ranges:pH/Antimony：(-2.00 ~ 16.00) pH ORP：(-2000 ~ 2000) mV
Temperature types:NTC10K ，Pt1000 ，Pt100
Temperature range:(-10~130)
Accuracy:pH：±0.02pH/Antimony：±0.2pH/ORP：±2mV
Measured variables:pH/ORP/Conductivity/Dissolved
Oxygen/Turbidity/Sludge Concentration/Inductive
Conductivity/ResidualChlorine/Ammonia nitrogen/Nitrate nitrogen/COD, etc.

Specifications

Analog sensor input
Measured variables	pH / ORP / Antimony
Measuring ranges	pH/Antimony: (-2.00 ~ 16.00) pH; ORP: (-2000 ~ 2000) mV
Input impedance	10¹²Ω
Temperature types	NTC10K, Pt1000, Pt100
Temperature range	0~130°C
Accuracy	pH: ±0.02pH Antimony: ±0.2pH ORP: ±2mV NTC10K: (-10~60)°C accuracy: ±0.3°C (60~130)°C accuracy: ±2°C Pt1000 accuracy: ±0.3°C Pt100 accuracy: ±0.3°C
Resolution	pH/Antimony: 0.01pH; ORP: 1mV
Repeatability	0.02pH
Temperature compensation	Manual compensation: Automatic compensation: Linear, Acid, Base, Pure

Digital sensor input

Measured variables

pH/ORP/Conductivity/Dissolved Oxygen/Turbidity/Sludge Concentration/Inductive Conductivity/Residual

Chlorine/Ammonia nitrogen/Nitrate nitrogen/COD, etc.

Measuring ranges

pH: (0.00 ~ 14.00) pH

ORP: (-2000 ~ 2000) mV

Dissolved oxygen: (0 ~ 40) mg/L

Saturation: (0 ~ 200)%

Conductivity: (0 ~ 500) mS/cm

Turbidity: (0 ~ 4000) NTU

Sludge concentration: (0 ~ 120000) mg/L

Inductive conductivity: (0 ~ 2000) mS/cm

Residual chlorine: (0~ 100) mg/L

Ammonia nitrogen: (0~ 1000) mg/L

Nitrate nitrogen: (0~ 1000) mg/L

COD: (0~ 1500) mg/L

Note: Actual measurement ranges should refer to the technical data of the connected sensors.

Output
Current output	Isolated, 2-channel (0/4~20) mA, configurable to corresponding measurement ranges, load capacity 750Ω output accuracy ±0.1%FS,compliant with NAMUR NE 43
	standards
Communication output	Isolated, RS485 interface Modbus-RTU communication protocol.
Alarm output	3-channel SPST (2 alarms + 1 cleaning), NO/NC type, capacity 250VAC 5A
Alarm relay delay	0~9999 seconds, adjustable.
Electrical specifications
Power supply	AC: (85~265)V, 50/60Hz DC: (21.6~26.4) V
Power consumption	20W
Cable entries	M20*1.5 cable gland
Cable specification	Spring terminals: suitable for AWG16~AWG24 (0.2mm2~ 1.5mm2 ) cables; Plug-in terminals: suitable for AWG12~AWG28 (1mm2~ 2.5mm2 ) cables;
Environment
Operating environment	Temperature: (0 ~ 60)°C Relative Humidity: 10 %~85% ( non-condensing)
Storage environment	Temperature: (-15~65)°C Relative Humidity: 5%~95% (non-condensing) Altitude : <2000m
Ingress protection	IP66
Flame Retardancy	UL94V-0
