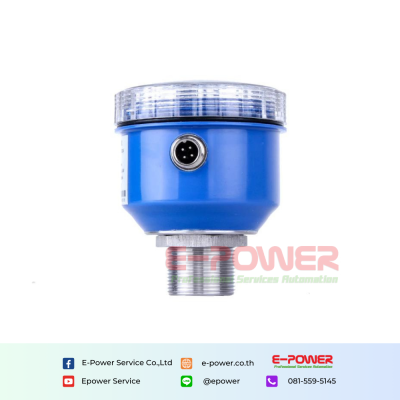

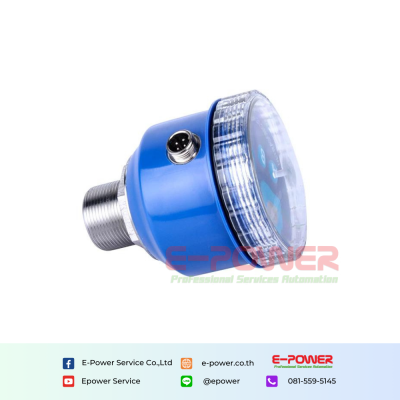

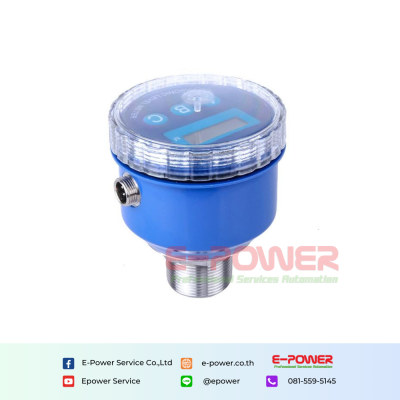

SUP-ZPM Ultrasonic level transmitter
SUP-ZPM Ultrasonic level transmitter is microprocessor controlled digital level meter. Ultrasonic pulses generated by the sensor (transducer) emitted in the measurement, the surface acoustic wave after reflection by the liquid receiving same sensor or an ultrasonic receiver, by a piezoelectric crystal or a magnetostrictive device into an electrical signal by transmitting and receiving sound waves to calculate the time between the sensor surface to the distance measured liquid.
āļāļģāļāļ§āļ
Product description
Characteristics
- Measure range: 0 ~ 15m
- Blind zone: 0.6m
- Accuracy: 0.3%F.S, 0.5%F.S
- Power supply: (18~28) VDC
Specification
| Product | Ultrasonic level transmitter | |
| Model | SUP-MP-C | |
| Measure range | 1m, 2m | |

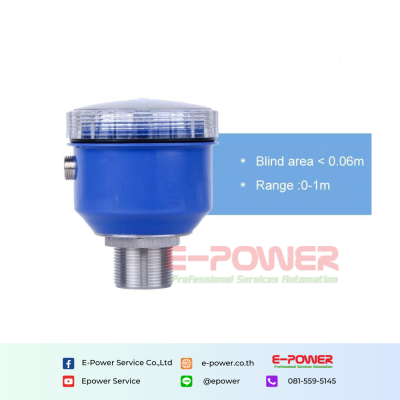

| Blind zone | 0.06mïžrange 1mïž 0.15mïžrange 2mïž | |
| Accuracy | 0.5%FS | |
| Display | OLED | |
| Output | 4-20mA RLïž600ÎĐ HART(two-wire) (0~5)V/(0~10)V RS485 2 relays(AC:2A 250V DC:5A 24V) | |
| Power supply | 12-24VDC | |
| Power consumption | <1.5W | |
| Ingress protection | IP65/IP68(optional) | |
