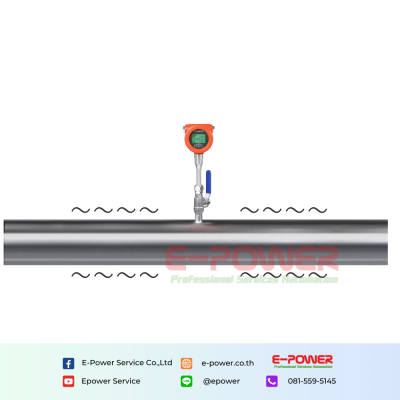

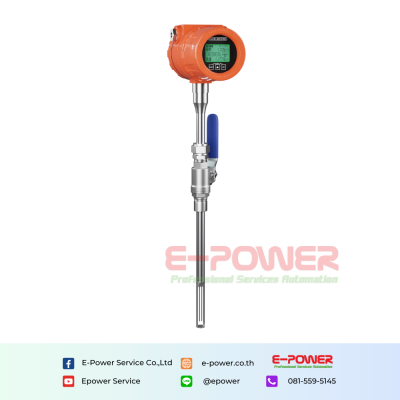

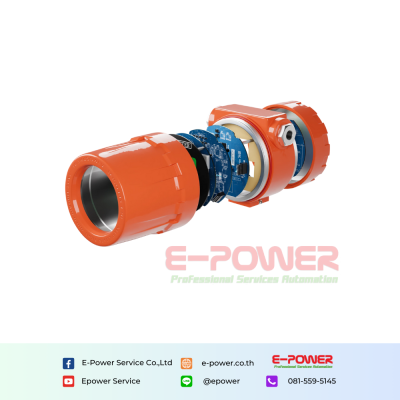

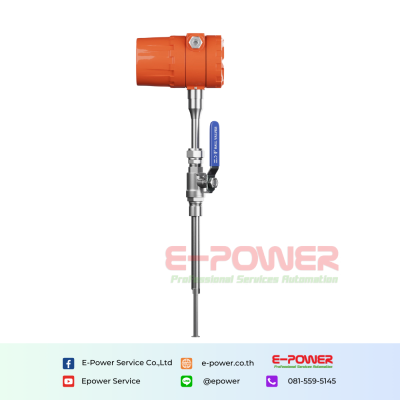

SUP-MF Thermal mass flowmeter

The thermal mass flow meter is designed based on the principle of thermal diffusion. The instrument uses the constant temperature difference method to accurately measure the gas. It has the advantages of small size, high degree of digitization, convenient installation and accurate measurement. Reduce your energy costs and increase your sustainability. Monitor your consumption and analyze your leakage flows with just one measuring device.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Without temperature and pressure compensation
  • Without temperature and pressure compensation
  • Wide range: 0.5Nm/sï―ž100Nm/s
  • Vibration resistance and long service life
  • Easy installation and maintenance
  • Digital circuit, accurate measurement
  • With RS485 communication

Specification

TypeInsertion
Medium Steady-state gases (except unstable media as acetylene and boron trichloride etc.)
Diameter  DN65~DN1000
 Flow rate0.1~100Nm/s
Accuracy Âą2.5%
 Working TemperatureSensor: -40~+300     Converter: -20~45
 Working pressure< 2.5 MPa
 Power supply 220VAC  ;   24VDC, 18W
 Signal output 4~20mA,   RS485 communication (Modbus RTU)
 Ingress protectionIP65
 Body Materials Stainless shell
 Relay 1~2 replay optional
