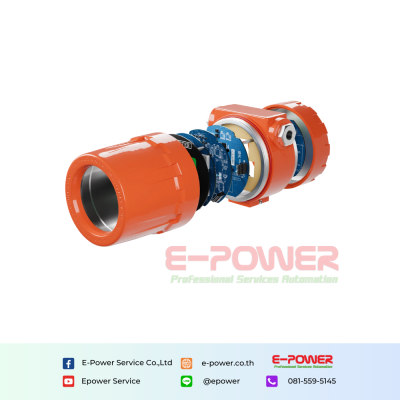

SUP-MF Thermal mass flowmeter

The thermal mass flow meter is designed based on the principle of thermal diffusion. The instrument uses the constant temperature difference method to accurately measure the gas. It has the advantages of small size, high degree of digitization, convenient installation and accurate measurement. Reduce your energy costs and increase your sustainability. Monitor your consumption and analyze your leakage flows with just one measuring device.

Quantity
Product details
Download

Characteristics

  • Without temperature and pressure compensation
  • Without temperature and pressure compensation
  • Wide range: 0.5Nm/s~100Nm/s
  • Vibration resistance and long service life
  • Easy installation and maintenance
  • Digital circuit, accurate measurement
  • With RS485 communication

Specifications

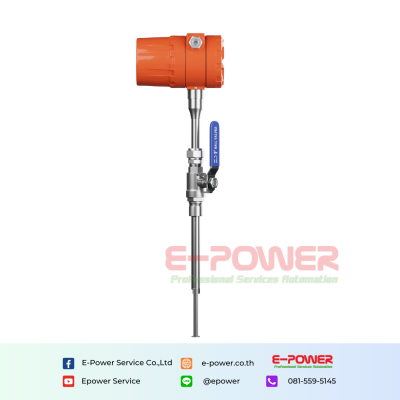

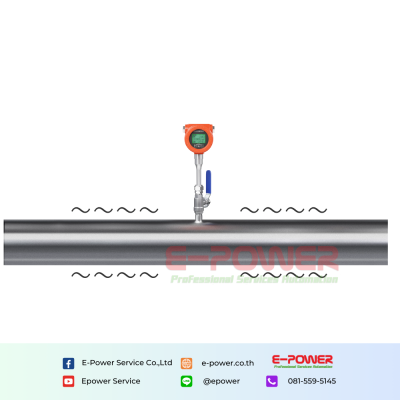

TypeInsertion
MediumSteady-state gases (except unstable media as acetylene and boron trichloride etc.)
DiameterDN65~DN1000
Flow rate0.1~100Nm/s
Accuracy±2.5%
Working TemperatureSensor: -40~+300    Converter: -20~45
Working pressure2.5 MPa
Power supply220VAC ; 24VDC, 18W
Signal output4~20mA, RS485 communication (Modbus RTU)
Ingress protectionIP65
Body MaterialsStainless steel
Relay1~2 relay optional
