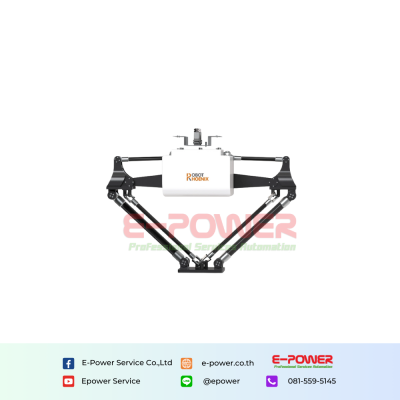

Robot Phoenix BAT1000B-S60 Heavy Load Delta Robot
BAT1000B-S60 delta robot is a 2-axis parallel robot with a rated payload of 60kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta industrial robot contributes to a flexible production during high precision and high speed manufacturing lines.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT1000B-S60 Heavy Load Delta Robot
- The rated payload is 60kg
- The working space diameter is 1000mm
- The repositioning accuracy is 0.02mm
- The maximum speed is 2m/s
- The rated power is 3.9kW
Specification of BAT1000B-S60 Heavy Load Delta Robot
| Robot Model | BAT1000B-S60 |
| Rated Load | 60kg |
| Working Space Diameter | 1000mm |
| Number of Axles | 2 |
| Repeated Positioning Accuracy | 0.02mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | / |
| Maximum Speed | 2m/s |
| Power Supply Voltage | three-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 3.9kW |
| Protection Grade | IP54 |
| Weight | 185kg |
Robot
Delta Robot
BAT1000B-S60 Heavy Load Delta Robot
BAT1000B-S60
Heavy Load Delta Robot
Robot Phoenix
Robot Phoenix BAT1000B-S60 Heavy Load Delta Robot
Robot Phoenix Heavy Load Delta Robot
Robot Phoenix Delta Robot
