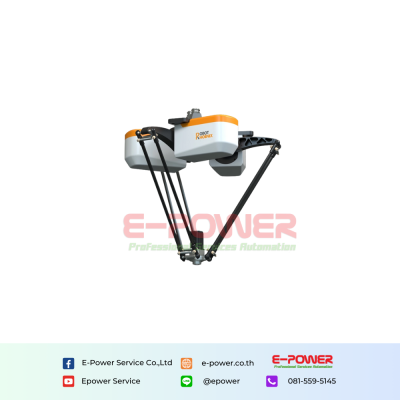

Robot Phoenix BAT800M-E3 Delta Robot
BAT800M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT800M-E3 Delta Robot
- The rated payload is 3kg
- The working space diameter is 800mm
- The repositioning accuracy is 0.08mm
- The maximum speed is 10m/s
- The rated power is 2.7kW
Specification of BAT800M-E3 Delta Robot
| Robot Model | BAT800M-E3 |
| Rated Load | 3kg |
| Maximum Load | 10kg |
| Working Space Diameter | 800mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.08mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.05° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | single-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 2.7kW |
| Protection Grade | IP54 |
| Weight | 62kg |
