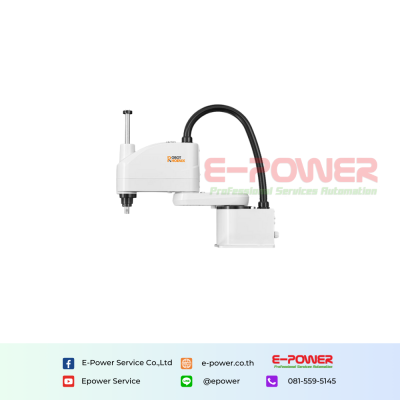

Robot Phoenix Python450-B6 SCARA Robot
Python 450-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This type of SCARA industrial robots has superior precision, speed, linearity and verticality performance. This small scara robot can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of Python450-B6 SCARA Robot
- Payload is 6kg
- Working diameter is 900mm
- Floor mounting
- Protection grade IP54
Specification of Python450-B6 SCARA Robot
| Robot Model | Python450-B6 | |
| Maximum Operating Speed | Joint 1 and 2 | 6600mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2360°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | Âą0.02mm |
| Joint 3 | Âą0.01mm | |
| Joint 4 | ¹0.01° | |
| Load | Rated | 3kg |
| Maximum | 6kg | |
| Measure | Installation Hole Diameter | 172Ã140mm; 4- Ï12 |
| Z-axis Diameter | 20mm | |
| Weight | 24kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
