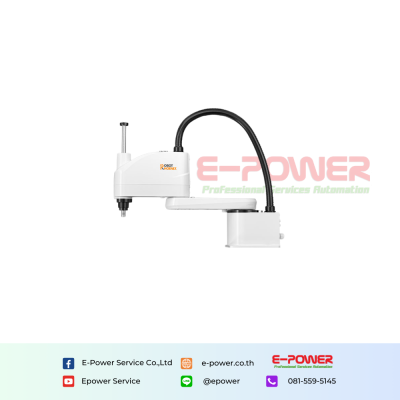

Robot Phoenix Python550-B6 SCARA Robot

Python550-B6 SCARA Robot is a 4-axis robot with a maximum payload of 6kg. This SCARA type robot has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Features of Python550-B6 SCARA Robot

  • Payload is 6kg
  • Working diameter is 1100mm
  • Floor mounting
  • Protection grade IP54

Specification of Python550-B6 SCARA Robot

Robot ModelPython550-B6
Maximum Operating SpeedJoint 1 and 27400mm/s
Joint 31100mm/s
Joint 42360°/s
Repeated Positioning AccuracyJoint 1 and 2Âą0.02mm
Joint 3Âą0.01mm
Joint 4¹0.01°
LoadRated3kg
Maximum6kg
MeasureInstallation Hole Diameter172×140mm; 4- φ12
Z-axis Diameter20mm
Weight25kg (excluding cable)
Installation TypeTable Installation
InterfaceI/O Interface
Ethernet2
USB2
Ethercat1
RS232/RS4851
