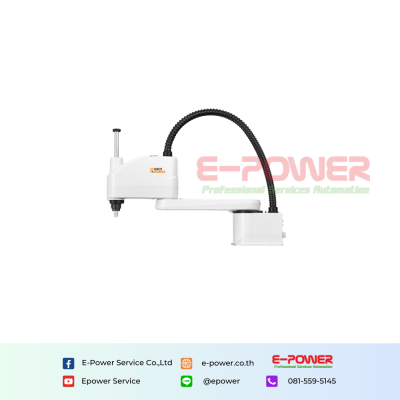

Robot Phoenix Python650-B6 SCARA Robot
Python 650-B6 SCARA robot is a 4-axis robot with a maximum payload of 6kg. Due to its flexible SCARA robot arm, it has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of Python650-B6 SCARA Robot
- Payload is 6kg
- Working diameter is 1300mm
- Floor mounting
- Protection grade IP54
Specification of Python650-B6 SCARA Robot
| Robot Model | Python650-B6 | |
| Maximum Operating Speed | Joint 1 and 2 | 8200mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2360°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | Âą0.02mm |
| Joint 3 | Âą0.01mm | |
| Joint 4 | ¹0.01° | |
| Load | Rated | 3kg |
| Maximum | 6kg | |
| Measure | Installation Hole Diameter | 172Ã140mm; 4- Ï12 |
| Z-axis Diameter | 20mm | |
| Weight | 26kg (excluding cable) | |
| Installation Type | Table Installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
