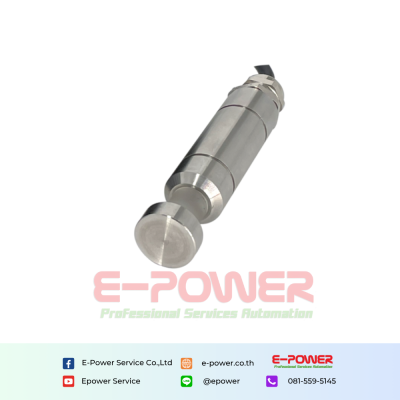

SW6- 360° Field of View UV-C 254nm Irradiance Detector
The SW6 series UV sensors are widely used for detecting ultraviolet radiation and offer a 360° field of view in multiple configurations. Placed within a quartz tube at the center of a circular lamp array, they enable lateral ‘side-looking’ detection of UV-C radiation between the lamps. These sensors are primarily used to monitor multiple UV radiation sources simultaneously in wastewater disinfection plants.
รายละเอียดสินค้า
Overview
SW6 360° Field of View UV-C 254nm Irradiance Detector with lateral UV detection
- The SW6 detector is specifically engineered for precise 254nm UV-C light irradiance measurements from sources such as low-pressure mercury lights, offering a broad dynamic range. Equipped with a robust ROD diffuser featuring a 360° radial field of view, a dedicated band-pass filter, and a UV-C hardened photodiode, this detector minimizes degradation over time. Its versatile applications span air and water sterilization, Eprom erasure, UV-C pre-aging systems, Municipal water treatment, and medical equipment sterilization.
Main Features
- The SW6 360° Field of View UV-C 254nm Irradiance Detector with lateral UV detection is supplied with a 2.5m long coaxial cable with a selectable -1, -2, or -4 type connector for use with Gigahertz-Optiks range of optometers. Internationally traceable calibration & certification of UV irradiance in W/m² and W/cm² within the specified spectral sensitivity range is provided.
General Specification
| Parameter | Value |
|---|---|
| Response Spectrum | 210-280nm(UV) |
| Peak Response Spectrum | 253.7num |
| Output Signal | (4-20mA, 0-5V) |
| Power Supply | (5vDC ,12v DC ,24v DC) |
| Load impedance | >1k |
| Mode of Connection | 3 wire |
| Measuring Range | 0~20000uw/cm² |
| Power Consumption | <0.5w |
| Operating Temperature | -10-60°C |
| Storage Temperature | -10-70°C |
| Shell Material | SUS316L |
| Screw Specification | To be mounted in a quartz tube |
| Cable Model | 2.5M long |
