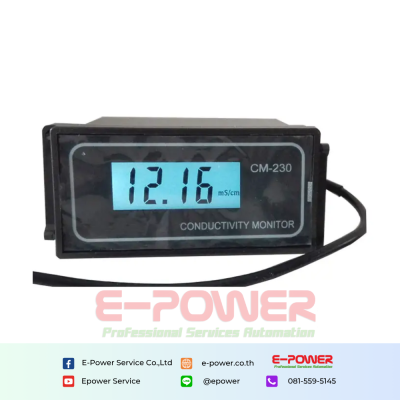

CM-230 Conductivity Meter
Character & Application
Affordable industrial on-line conductivity monitor, controller, small size and low price. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel
Automatic temperature compensation,Wide range input temperature.
An ideal auxiliary instrument of various types of small pure water equipment, cooling towers, water quality monitoring and so on.
Parameters
| Model | CM-230 | TDS-230 |
|---|---|---|
| Range | 0 ~ 20/200/2000 μS/cm; 0 ~ 20 mS/cm (optional) | 0 ~ 20/200/2000 ppm |
| Accuracy | 1.5%(FS) | |
| Temp. Comp. | The 25°C basis, automatic temperature compensation | |
| Operation Temp. | 0 ~ 50°C | |
| Sensor | 1.0cm-1 | |
| Display | 3½ Bit LCD | |
| Current output signal | (Optional: 4-20mA, non isolated, non migrated) | |
| Control output signal | - | |
| Power | AC 110/220V±10%, 50/60Hz | |
| Working environment | Ambient Temp. 0 ~ 50°C, Relative Humidity 85% | |
| Overall dimensions | 48×96×100mm (H X W X D) | |
| Hole dimensions | 45×92mm (H X W) | |
| Installation Mode | Panel Mounted (Embedded) | |
