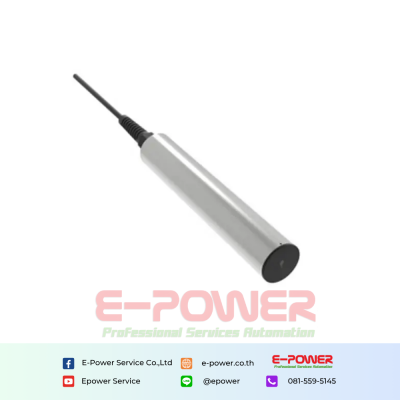

TUF-3850S Online Digital Turbidity Sensor

Short Description:

The infrared scattering light technology can eliminate the influence of the color of the sample, that is, the infrared light emitted by the light source will scatter when passing through the sample under test, and the intensity of the scattered light is proportional to the turbidity. The turbidity sensor is provided with a scattered light receiver in the 90° direction, and the turbidity value is obtained by analyzing the intensity of the set of scattered light.

Main Features
ZS-6130 online Turbidity Sensor with Modbus RS485 output,
Apply ISO7027 standard method (infrared light scattering technology) to eliminate the influence of sample color;
Small size and easy to integrate and install;
The optical path is made of optical fiber material, which has small light attenuation and good stability.
Digital sensor, strong anti-interference ability, long transmission distance;
Standard digital signal output, which can be integrated and networked with other devices without a transmitter.

Application
It is widely used in on-site monitoring of water turbidity in sewage treatment, surface water, industrial and agricultural water supply and drainage, domestic water, boiler water quality, universities, research institutes, swimming pools, aquaculture and other fields.

Specifications
