Short Description:

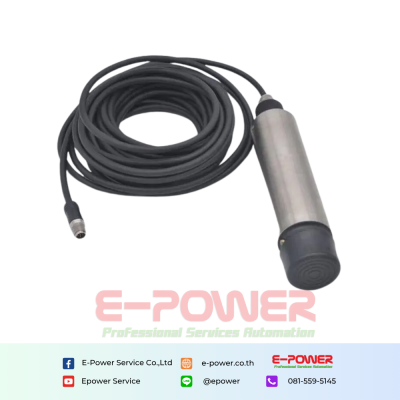

The blue-green algae sensor utilizes the characteristic that the cyanobacteria has an absorption peak and an emission peak in the spectrum. The spectral absorption peak of the cyanobacteria emits monochromatic light to the water, and the cyanobacteria in the water absorbs the energy of the monochromatic light, releasing another wavelength. With monochromatic light emitting peaks, the intensity of light emitted by cyanobacteria is proportional to the amount of cyanobacteria in water. The sensor is easy to install and use. Widely used in monitoring of blue-green algae in water stations, surface water, etc.
Product Specifications
| Specifications | Details |
|---|---|
| Size | Diameter 37mm* Length 220mm |
| Weight | 0.8 KG |
| Main Materials | Main Body: SUS316L+ PVCO type Ring: FluororubberCable: PVC |
| Waterproof Rate | IP68/NEMA6P |
| Measurement Range | 100-300,000 cells/mL |
| Measuring accuracy | Âą5% of the corresponding value of the 1 ppb rhodamine WT dyesignal level |
| Pressure Range | 0.4Mpa |
| Storage Temperature | -15~65°C |
| Environment Temperature | 0~45°C |
| Calibration | Deviation Calibration, Slope Calibration |
| Cable Length | Standard 10-Meter Cable, Max Length: 100 Meters |
| Warranty Period | 1 Year |
| Working conditions | The distribution of blue-green algae in water is very uneven. It is recommended to monitor more than one point; the water turbidity is lower than 50NTU. |
