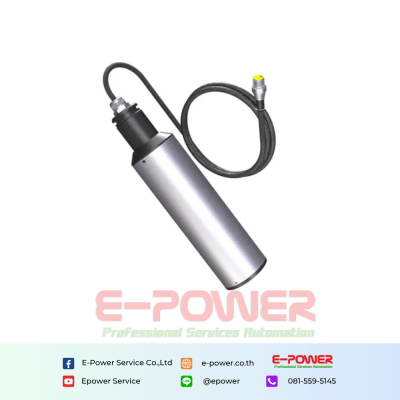

TUF-4850S Digital Turbidity sensor
Short Description:
The digital turbidity sensor, based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields.
| Specifications | Details |
|---|---|
| Size | Diameter 60mm* Length 256mm |
| Weight | 1.65 KG |
| Main Materials | Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version) Upper and Lower CoverïžPVC Cable: PVC |
| Waterproof Rate | IP68/NEMA6P |
| Measurement Range | 0.01-100 NTUã0.01ïž4000 NTU |
| Indication Resolution | Less than Âą 2% of the measured value, or Âą 0.1 NTU Maximax criterion |
| Pressure Range | 0.4Mpa |
| Flow velocity | 2.5m/sã8.2ft/s |
| Storage Temperature | -15~65°C |
| Environment Temperature | 0~45°C |
| Calibration | Sample Calibration, Slope Calibration |
| Cable Length | Standard 10-Meter Cable, Max Length: 100 Meters |
| Warranty Period | 1 Year |
| High Voltage Baffle | Aviation Connector, Cable Connector |
