Short Description:

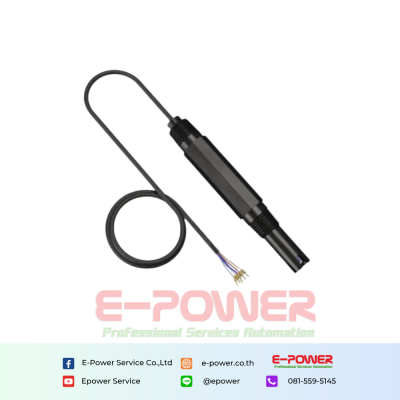

The digital conductivity sensor has glassy platinum electrode. Instrument measurement principle is to put two discs in the sample solution (electrical conductivity patch), by adding a voltage in the two discs, the current can be measured. In general, the voltage is in sine wave form. The conductivity is determined by the ohmic formula based on the voltage and current values.
It is widely used in such fields as sewage plants, water works, water supply stations, surface water, aquaculture and other industries for conductivity monitoring.
Specification Details
| Specification | Details |
|---|---|
| Size | Diameter 30mm*Length195mm |
| Weight | 0.2KG |
| Main Material | Black polypropylene cover, glassy platinum electrode |
| Waterproof Grade | IP68/NEMA6P |
| Measuring Range | 10-2,000 Ξs/cm |
| Measurement Accuracy | Âą1.5% (FS) |
| Pressure Range | 0.6Mpa |
| Measuring Temperature Range | 0 ~ 80 °C |
| Response Time | Less than 10 seconds (reaching to endpoint 95%) (After stirring) |
| Length of Cable | Standard cable length is 6 meters, which is extendable. |
