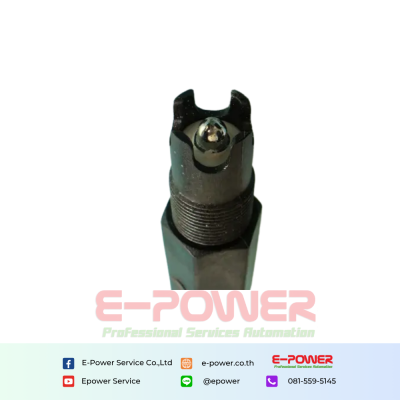

PH, ORP sensor GP-600HF
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Short Description:
Performance&Features
1. Easy to use and dont need to refill electrolyte.
2. Gel electrolyte salt bridge can effectively prevent electrode poisoning.
3. Adopt anti-pillution circular PTFE diaphragm, not easy to be blocked and work long term.
4. Adopt high accuracy Ti sensitive membrane, has quick response, good thermal stability features.
| Measuring range | 0-10PH | Body main material | PTFE |
| Temp. range | 0-60°C | PTFE material cover | |
| Pressure range | 0-0.4mPa | Wetted material | High accuracy Ti |
| Accuracy | Âą0.01 pH | Circular PTFE diaphragm | |
| Equipotential point | 2Âą1PH | Gel electrolyte salt bridge. | |
| Slop | âĨ95 % | Connect dimension | 3/4" NPT (BSP optional) thread |
| Driftance | âĪ0.02PH/24hour | Flow rate | Not more than 3m/s |
| Reference Resistance | âĪ250 Mohm(25°C) | Response time | 5sec |
| Cable join way | Pin or BNC connector | Installation way | Piping or Submersible |
| Temperature Comp. | PT1000, PT100, NTC 10K RTD | ||
Applications
Widly used for measuring in enviromental Protection and waste water treatment including the Hydrofluoric acid (HF)
