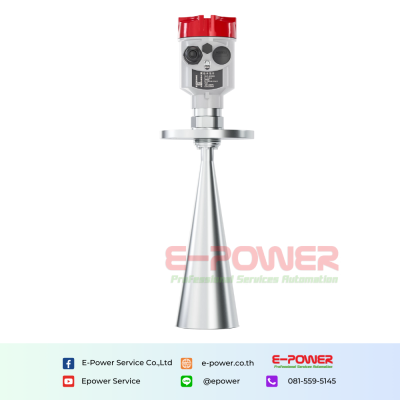

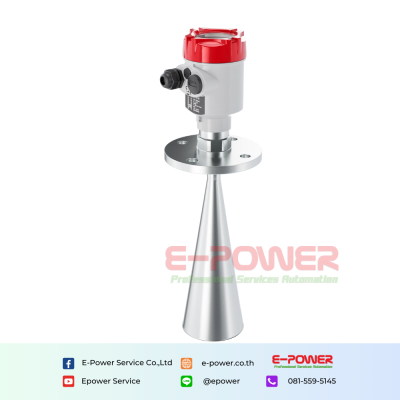

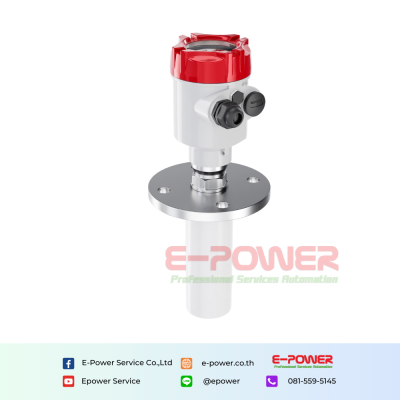

SUP-RD903 Solid material radar level meter

SUP-RD904 Solid material Radar level meter with high frequency, measurement of solid and low dielectric constant of the best choice.

Quantity

Brands :Supmea

Product description

Characteristics

Range: 0~70 m
Application: Solid material, strong dust, easy to crystallize, condensation occasion
Frequency Range: 26GHz

Specification

Product	Radar level meter
Model	SUP-RD903
Accuracy	±20mm (range 30m) ±30mm (range 70m)
Application	Solid material, strong dust, easy to crystallize, condensation occasion
Process Connection	Universal flange
Medium Temperature	-40~250
Process Pressure	-0.1 ~ 0.3 MPa (universal flange); -0.1～4.0 MPa (flat flange)
Ingress protection	IP67
Frequency Range	26GHz
Signal Output	4-20mA (Two-wire/Four) RS485/Modbus
Power supply	2-wire（DC24V）/ 4-wire（DC24V /AC220V）
