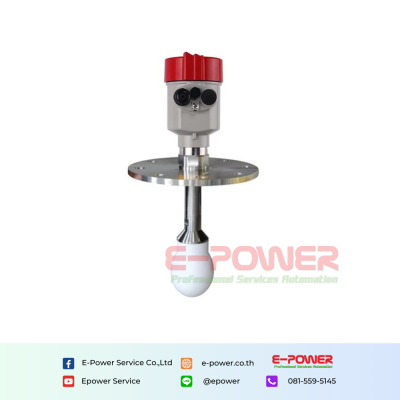

SUP-RD902S Radar level meter for high temp and pressure application

SUP-RD902S Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Quantity

Categories : Sensor , Level , Radar level transmitter

Brands :Supmea

Product description

Characteristics

Range: 0~30 m
Accuracy: ±3mm
Application: High temperature, high pressure and corrosive medium
Frequency Range: 26GHz

Specification

Product	Radar level meter
Model	SUP-RD902S
Measure range	0-30 meters
Application	High temperature, high pressure and corrosive medium
Process Connection	Thread, Flange
Medium Temperature	-40~130(Standard type), -40~250(High temp type)
Process Pressure	-0.1~4.0MPa
Accuracy	±3mm
Protection Grade	IP67
Frequency Range	26GHz
Signal Output	4-20mA RS485/Modbus
Power supply	DC(6~24V)/ Four-wire DC 24V / Two-wire
