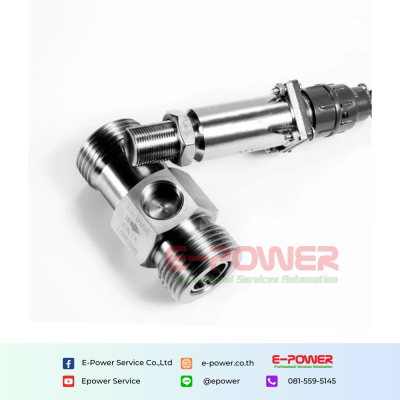

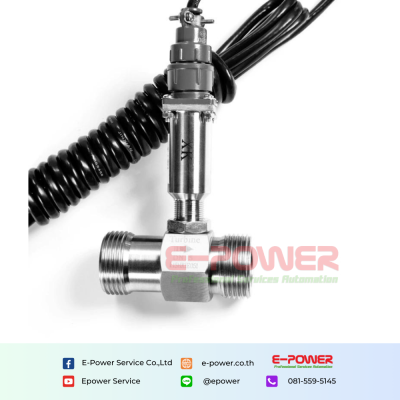

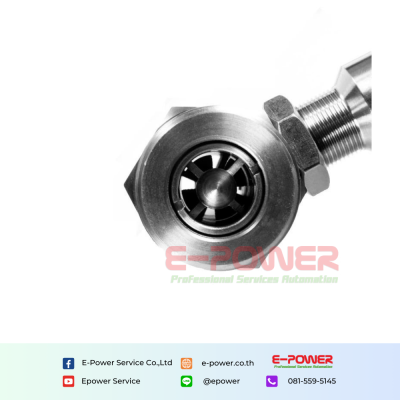

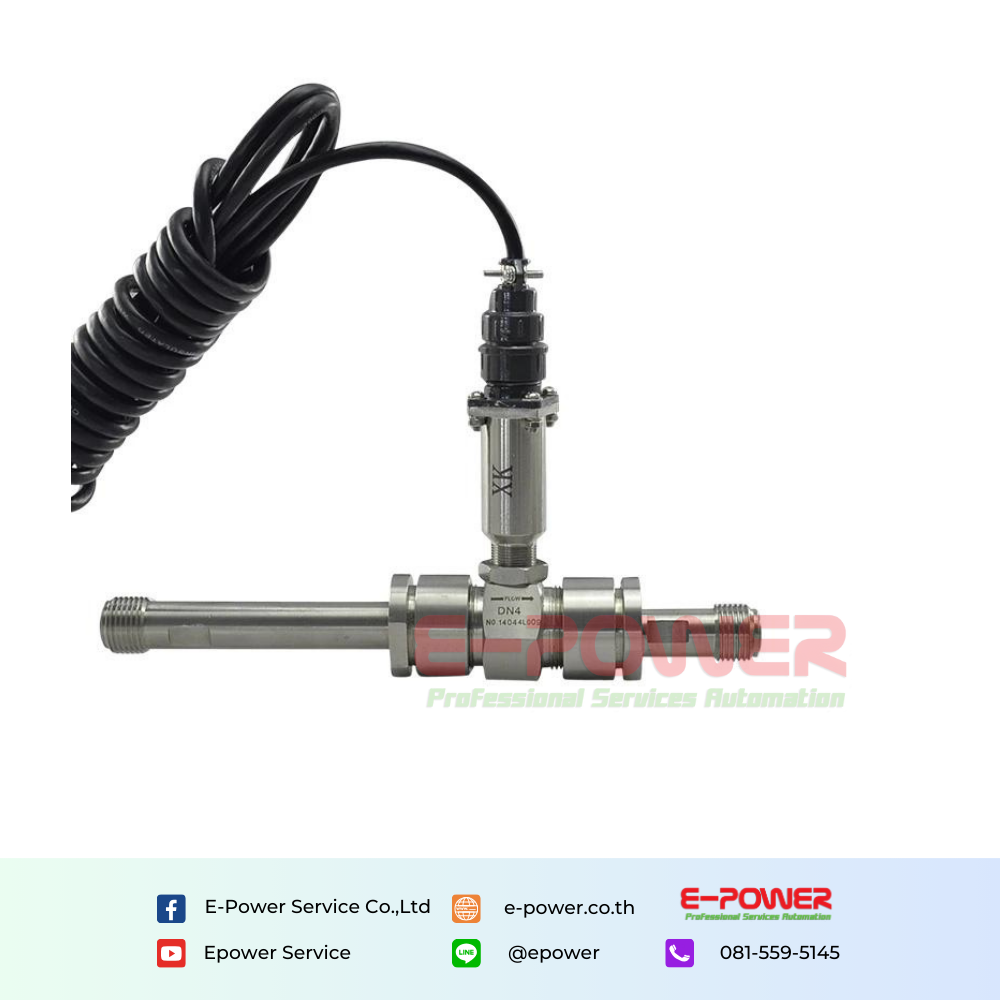

SUP-LWGY Turbine flow sensor thread connection

SUP-LWGY Turbine flow sensor thread connection

SUP-LWGY series liquid turbine flow sensor is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.

Quantity

Categories : Sensor , Flowmeter , Turbine flowmeter

Brands :Supmea

Product description

Download

Characteristics

Pipe diameter: DN4~DN100
Accuracy: 0.2% 0.5% 1.0%
Power supply: 3.6V lithium battery; 12VDC; 24VDC
Ingress protection: IP65

Specification

Product	Turbine flowmeter
Model	SUP-LWGY
Diameter Nominal	DN4~DN100
Nominal Pressure	86kPa ~ 106kPa
Accuracy	0.5%R, 1.0%R
Medium Temperature	-20°C ~ + 120°C
Power Supply	3.6V lithium battery; 220VAC; 24VDC
Output Signal	Pulse, 4-20mA, Modbus, Hart
Ingress protection	IP65
