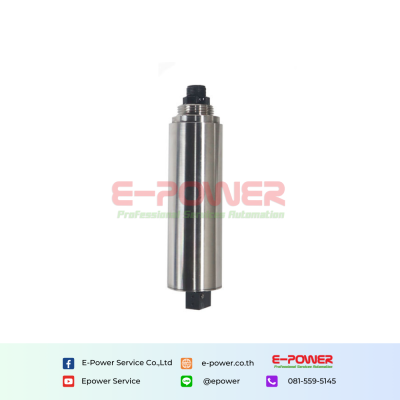

Online Chlorophyll Sensor

The chlorophyll sensor is detected by the principle of fluorescence method. According to the spectral absorption characteristics of chlorophyll, the water body is illuminated by a high-energy LED light source, and the chlorophyll a in the water body is excited to generate fluorescence of a specific wavelength, and the concentration of chlorophyll a in the water is measured.

Quantity
Product description

Sensor Overview

The chlorophyll sensor adopts the principle of fluorescence method. According to the spectral absorption characteristics of chlorophyll a, the water body is irradiated by a high-energy LED light source, and the chlorophyll a in the water body is excited to generate fluorescence of a specific wavelength, and the concentration of chlorophyll a in the water is measured.


Advantage

The chlorophyll sensor of the fiber optic chlorophyll sensor provides excellent repeatability and stability, and is not susceptible to ambient light. With an automatic cleaning brush, it eliminates air bubbles, reduces the impact of contamination on measurement, makes maintenance cycles longer, and maintains excellent stability for long-term online use.

Features

  • Digital sensor, RS-485 output, support MODBUS.
  • Automatic cleaning brush to prevent contamination and eliminate air bubbles.
  • Direct measurement is easier than traditional analysis methods.
  • Continuous online monitoring and real-time control of water quality.



Technical parameter

Product nameFiber optic chlorophyll sensor/Self-cleaning chlorophyll sensor
PrincipleFluorescence method
Range0~400 ug/L or 0 ~100 RFU
Resolution0.1μg/L or 0.1% RFU
LinearityR2>0.99
temperature range0°C~ 50°C
Protection levelIp68
Sensor interfaceSupport RS-485, MODBUS protocol
AssemblyInput type
Power informationDC 6~12V, I<50mA(Without wiping)
Probe cable length5 meters (default), can be customized
DimensionΦ45*175.8 mm
Housing materialSS316 (customizable titanium alloy)
Optical windowoptical fiber
Optical windowno/Yes
