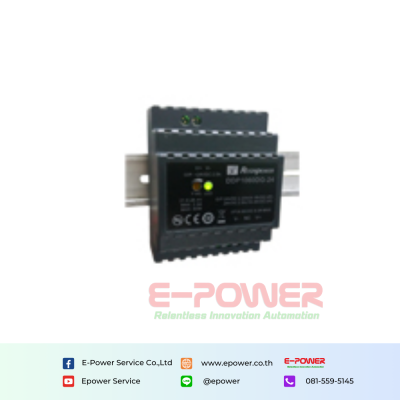

ReignPower DDP1060D Series DC-DC Switching Power Supply

Product description

Download

Detail Specification

MODEL DDP1060D		G-05	G-12	G-15	G-24	L-05	L-12	L-15	L-24
OUTPUT	DC voltage	5V	12V	15V	24V	5V	12V	15V	24V
	Rated Current	8A	5A	4A	2.5A	8A	5A	4A	2.5A
	Current Range	0~9A (1s, note 1)	0~ 5A	0~4A	0~2.5A	0~9A (1s, note 1)	0~5A	0~4A	0~2.5A
	Rated Power	40W	60W	60W	60W	40W	60W	60W	60W
	Ripple&Noise(max.)	60mVp-p	75mVp-p	75mVp-p	100mVp-p	60mVp-p	75mVp-p	75mVp-p	100mVp-p
	Voltage Adj. Range	4.5~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V	4.5~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.5%	±0.5%	±0.5%	±0.5%	±1.5%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	120ms, 85ms at full load.
	Hold Up Time(Typ.)	G-type: 5ms@24Vdc input				L-type: 10ms@48Vdc input
	External Capacitance load(Max.)	6800μF	4700μF	3300μF	2200μF	6800μF	4700μF	3300μF	2200μF
INPUT	Voltage Range	9~36Vdc				36~75Vdc
	Efficiency(Typ.)	87%	91%	91%	90%	87.5%	91%	90%	89%
	DC Current(Typ.)	3A/24Vdc				1.5A/48Vdc
	Inrush Current(Typ.)	20A/24Vdc				24A/48Vdc
PROTECTION	Overload	105~135% rated output power
	Overload	Protection type: Recovers automatically after fault condition is removed.
	Over Voltage	5.75~7V	13.8~16.2V	17.25~20.25V	28.8~34V	5.75~7V	13.8~16.2V	17.25~20.25V	28.8~34V
	Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover.
	Reverse Polarity	By internal MOSFET, no damage, recovers automatically after fault condition removed.
	Under VoltageLockout	24Vin(G-type): Power ON 9V, OFF 7.5V
	Under VoltageLockout	48Vin(L-type): Power ON 36V, OFF 34V
