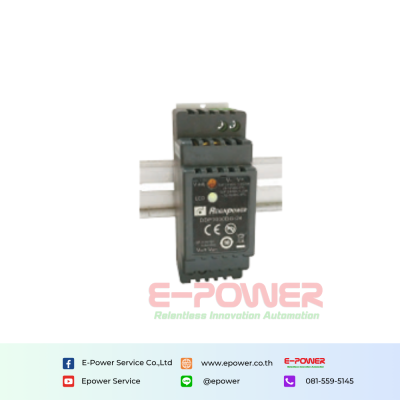

ReignPower DDP1030D Series DC-DC Switching Power Supply

Product description

Download

Detail Specification

MODEL DDP1030D		G-05	G-12	G-15	G-24	L-05	L-12	L-15	L-24
OUTPUT	DC voltage	5V	12V	15V	24V	5V	12V	15V	24V
	Rated Current	6A	2.5A	2A	1.25A	6A	2.5A	2A	1.25A
	Current Range	0~6A	0~2.5A	0~2A	0~1.25A	0~6A	0~2.5A	0~2A	0~1.25A
	Rated Power	30W	30W	30W	30W	30W	30W	30W	30W
	Ripple&Noise(max.)	60mVp-p	75mVp-p	75mVp-p	100mVp-p	60mVp-p	75mVp-p	75mVp-p	100mVp-p
	Voltage Adj. Range	4.5~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V	4.5~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%	±2.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.5%	±0.5%	±0.5%	±0.5%	±1.5%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	120ms, 85ms at full load.
	Hold Up Time(Typ.)	G-type: 5ms@24Vdc input				L-type: 10ms@48Vdc input
	External Capacitance load(Max.)	3300μF	2200μF	1500μF	1000μF	3300μF	2200μF	1500μF	1000μF
INPUT	Voltage Range	9~36Vdc				36~75Vdc
	Efficiency(Typ.)	85%	86%	87%	89%	86%	89%	90%	91%
	DC Current(Typ.)	1.5A/24Vdc				0.8A/48Vdc
	Inrush Current(Typ.)	15A/24Vdc				15A/48Vdc
PROTECTION	Overload	105~135% rated output power
	Over Voltage	6~7.5V	14~17V	20.9~23.1V	28~34V	6~7.5V	14~17V	20.9~23.1V	28~34V
	Reverse Polarity	By internal MOSFET, no damage, recovers automatically after fault condition removed.
	Under VoltageLockout	24Vin(G-type): Power ON9V, OFF7.5V
	Under VoltageLockout	48Vin(L-type): Power ON36V, OFF34V
