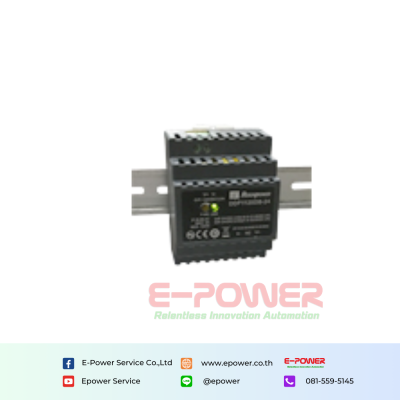

ReignPower DDP1120D Series DC-DC Switching Power Supply

Product description

Download

Detail Specification

MODEL DDP1120D		B-12	B-24	B-48	C-12	C-24	C-48
OUTPUT	DC voltage	12V	24V	48V	12V	24V	48V
	Rated Current	10A	5A	2.5A	10A	5A	2.5A
	Current Range	0~10A	0~ 5A	0~2.5A	0~10A	0~5A	0~2.5A
	Rated Power	120W	120W	120W	120W	120W	120W
	Ripple&Noise(max.)	50mVp-p	50mVp-p	50mVp-p	50mVp-p	50mVp-p	50mVp-p
	Voltage Adj. Range	10.8~13.2V	21.6~26.4V	43.2~52.8V	10.8~13.2V	21.6~26.4V	43.2~52.8V
	Voltage Tolerance	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Setup, Rise Time	500ms, 60ms@24Vdc			500ms, 60ms@48Vdc
	Hold Up Time(Typ.)	Meet S1 level 6ms (full load), meet S2 level 10ms (70% load).			Meet S1 level 6ms (full load), meet S2 level 10ms (60% load).
INPUT	Voltage Range	16.8~33.6Vdc			33.6~67.2Vdc
	Efficiency(Typ.)	89%	89.5%	91%	89.5%	91%	92%
	DC Current(Typ.)	5.6A@24Vdc			2.8A@48Vdc
	Inrush Current(Typ.)	5A@24Vdc			5A@48Vdc
PROTECTION	Overload	105~135% rated output power
	Overload	Protection type: Recovers automatically after fault condition is removed.
	Over Voltage	14.4~16.8V	28.8~33.6V	56.7~67.2V	14.4~16.8V	28.8~33.6V	56.7~67.2V
	Over Voltage	Protection type: Recovers automatically after fault condition is removed.
	Over Temp.	Recovers automatically after fault condition is removed.
	Reverse Polarity	By internal MOSFET, no damage, recovers automatically after fault condition removed.
	Under Voltage Lockout	Recovers automatically when input voltage reaches Vin min.
