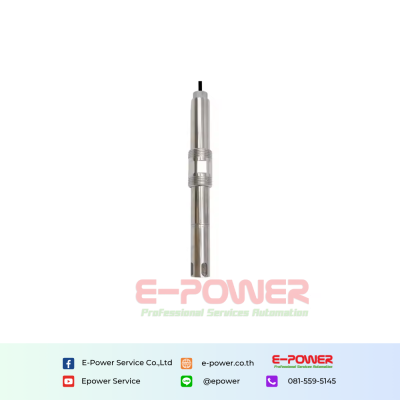

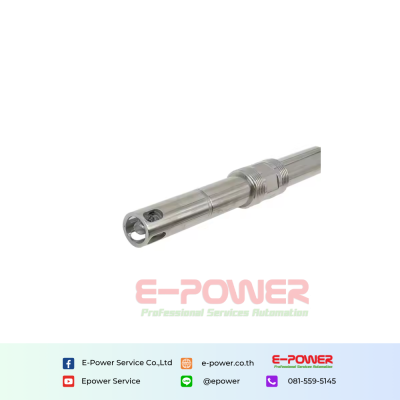

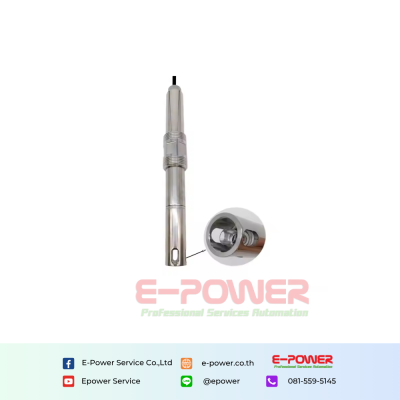

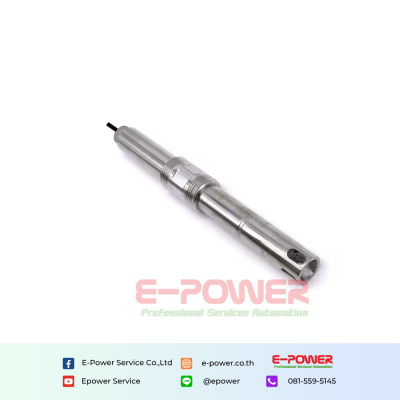

Remond RS485 Conductivity Sensor/ Stainless Steel TDS Salinity Sensor
Online RS485 Conductivity Sensor 4-20ma Salinity Sensor Stainless Steel TDS Electrode EC Probe for Waste Water
Product description
Online Electrical conductivity sensor features
- Digital sensors, 7*24 hours online monitoring
- 2-pole electrical conductivity sensor
- High precision, fast response
- No need controller and transmitter
- Built-in temperature sensor, automatic temperature compensation
- Power supply DC9-30V, output signal RS485 and 4-20mA
- The sensor can be connected to a computer or PLC
- A sensor can measure EC, TDS, salinity, temperature, resistivity
- IP68 grade, waterproof and dustproof
- A variety of installation methods, easy to install
Conductivity sensor specification
| Model | RMD-ISET110 |
| Measuring range | 0...20000uS/cm |
| Constant | K=10.0 |
| Accuracy | ±2%FS |
| Resolution | ±1uS/cm |
| Temperature range | 0...60°C |
| Temp compensation | Automatic |
| Power supply | DC12V,DC24V |
| Output signal | RS485, 4-20mA |
| Shell material | Stainless steel |
| Pressure range | 0...4bar |
| Thread | G3/4 |
| Electrical connection | Pin type |
| Installation | Immersion type |
| Cable length | 5m or customize |
| Protection grade | IP68 |
REMOND
Digital pH sensor
RS485 and 4-20mA output
Sensor
Remond RS485 Conductivity Sensor
Stainless Steel TDS Salinity Sensor
TDS Salinity Sensor
Salinity Sensor
