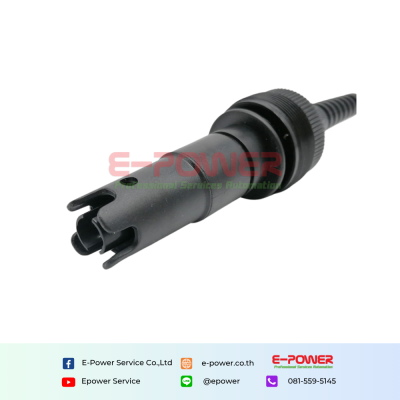

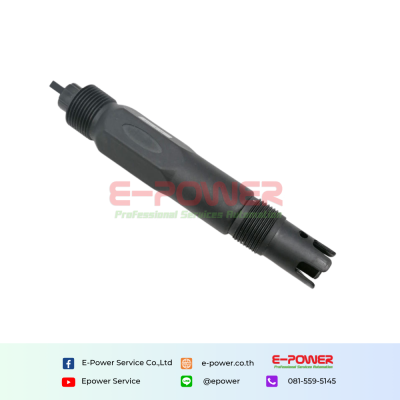

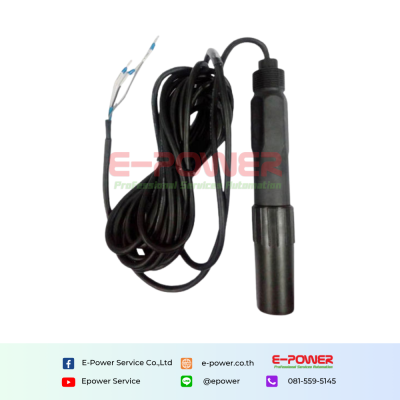

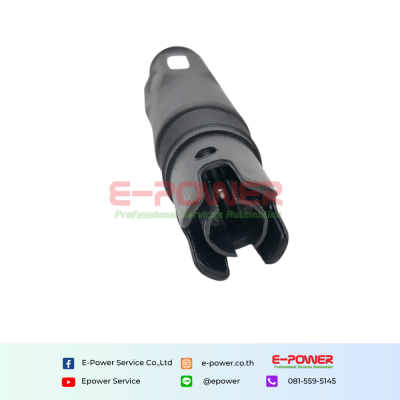

REMOND Online EC Meter Probe TSS Sensor Water Conductivity Sensor
Short Description
Electrical Conductivity Meter TSS Sensor EC Probe OEM EC Meter probe Online Water Conductivity Sensor
Brands: Remond
Product description

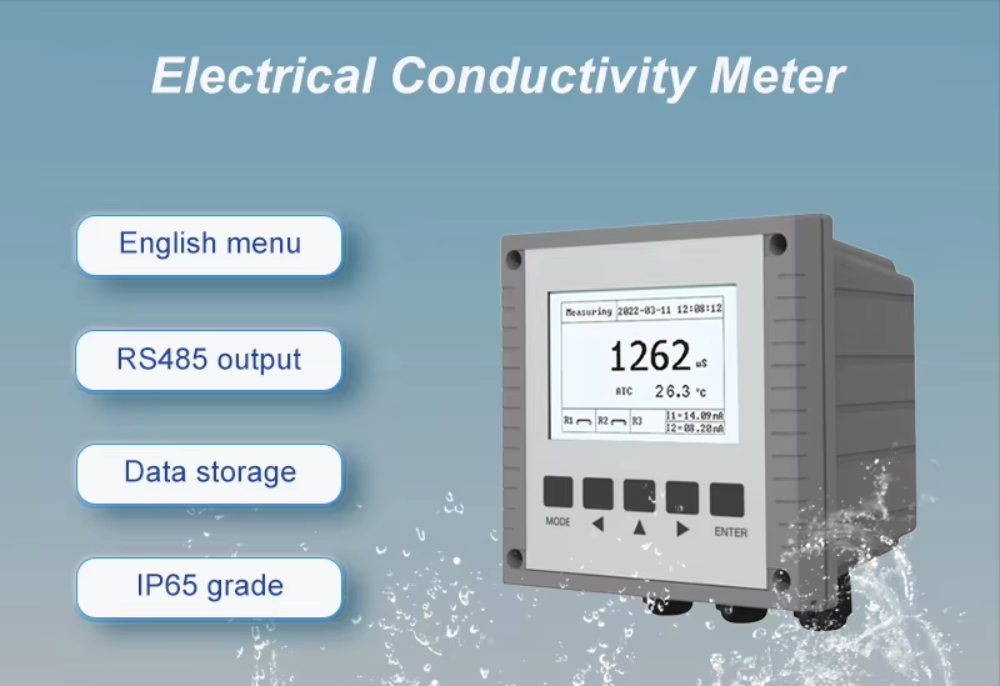

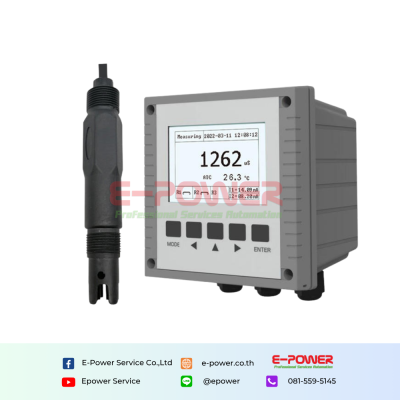

Electrical conductivity controller technical parameter
| Functions | EC | Resistivity | Salinity | TDS |
| Measuring range | 0.00uS-2000mS | 0.00-20.00 MΩ-CM | 0.00-78.00 g/Kg | 0-133000 ppm |
| Resolution | 0.01/0.1/1 | 0.01 | 0.01 | 1 |
| Accuracy | ±1%F.S. | ±1%F.S. | ±1%F.S. | ±1%F.S. |
| Temp. compensation | Pt 1000/NTC30K | |||
| Temp. range | -10.0 to +130.0°C | |||
| Temp. compensation range | -10.0 to +130.0°C | |||
| Temp. resolution | 0.1°C | |||
| Temp. accuracy | ±0.2°C | |||
| Cell constant | 0.001 to 20.000 | |||
| Ambient temperature range | 0 to +70°C | |||
| Storage temp. | -20 to +70°C | |||
| Display | Back light, dot matrix | |||
| EC current output1 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Temp. current output 2 | Isolated, 4 to 20mA output , max. load 500Ω | |||
| Current output accuracy | ±0.05 mA | |||
| RS485 | Mod bus RTU protocol | |||
| Baud rate | 9600/19200/38400 | |||
| Maximum relay contacts capacity | 5A/250VAC,5A/30VDC | |||
| Cleaning setting | ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours | |||
| One multi function relay | clean/period alarm/error alarm | |||
| Relay delay | 0-120 seconds | |||
| Data logging capacity | 500,000 | |||
| Language selection | English/traditional Chinese/simplified Chinese | |||
| Waterproof grade | IP65 | |||
| Power supply | From 90 to 260 VAC, power consumption < 7 watts | |||
| Installation | panel/wall/pipe installation | |||

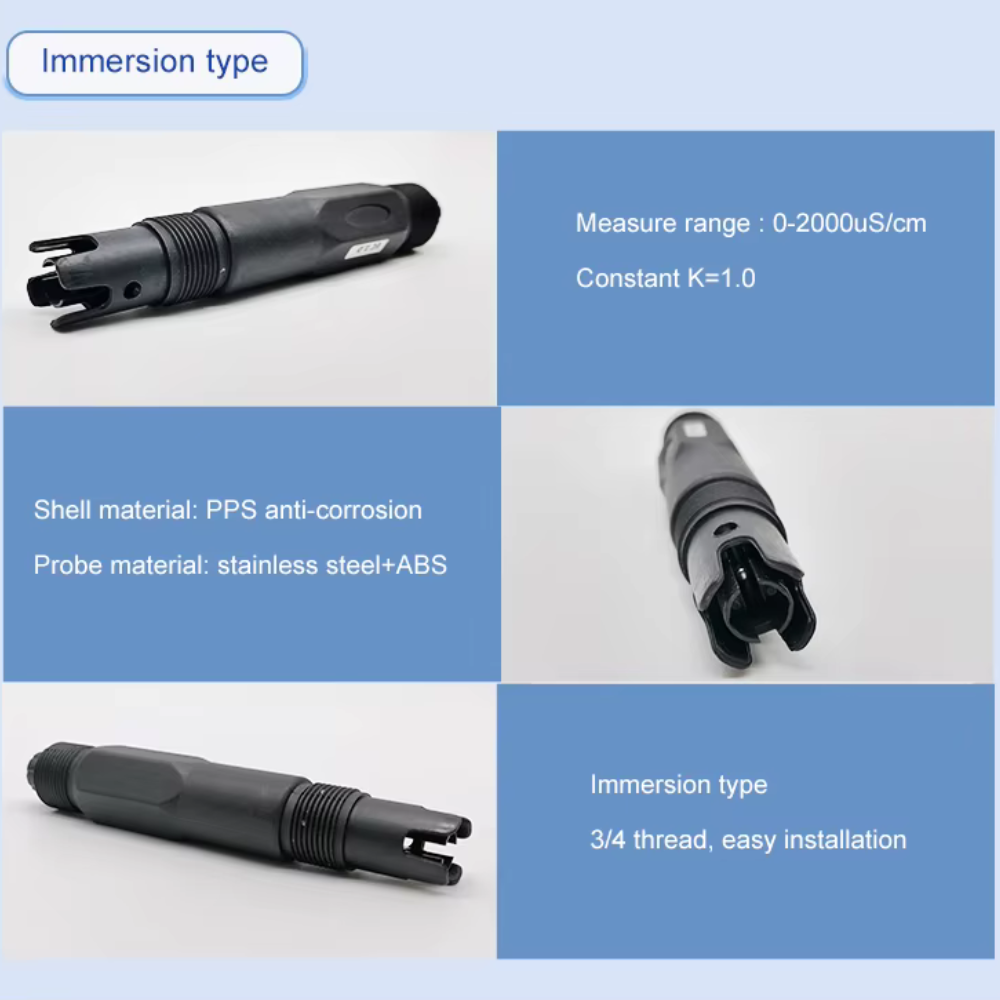

| Electrical conductivity sensor technical parameter | |
| Name | Conductivity sensor |
| Measuring range | 0...2000uS/cm |
| Constant | K=1.0 |
| Temp measure range | 0.0...60.0°C |
| Resolution | 1uS/cm |
| Accuracy | ±2%FS |

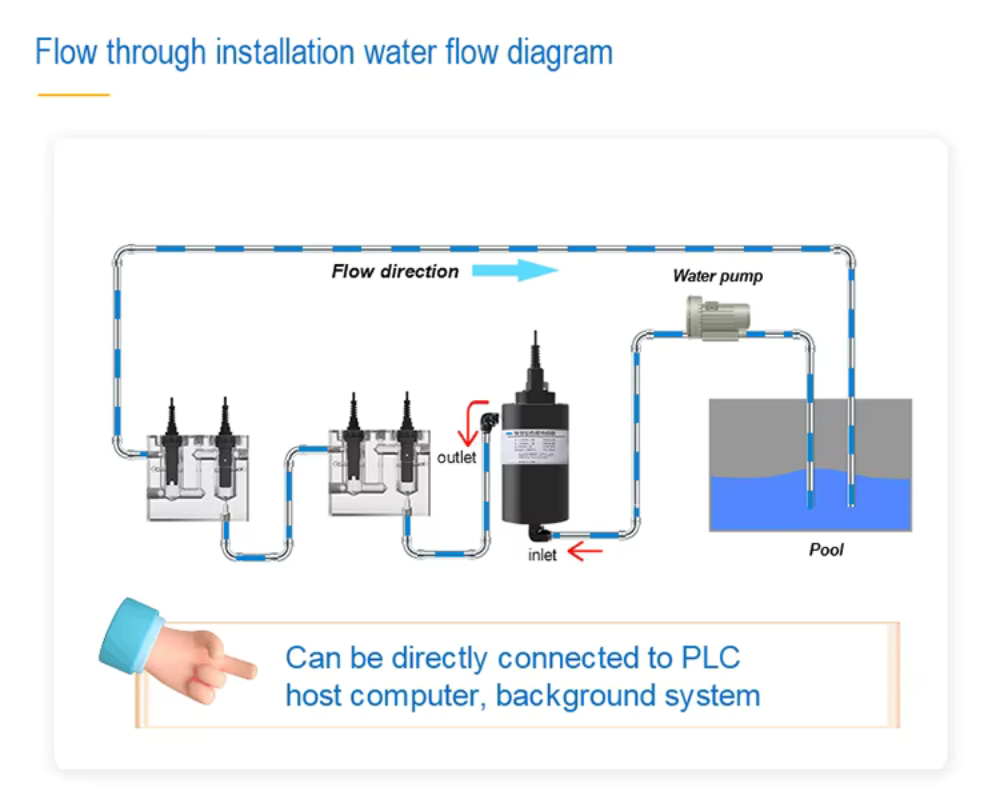

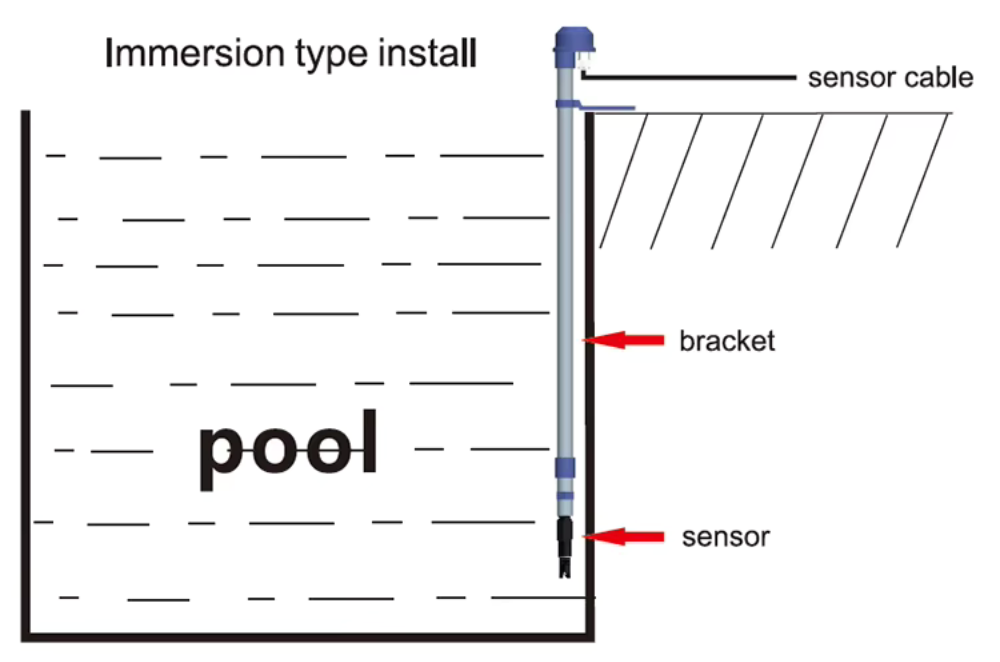

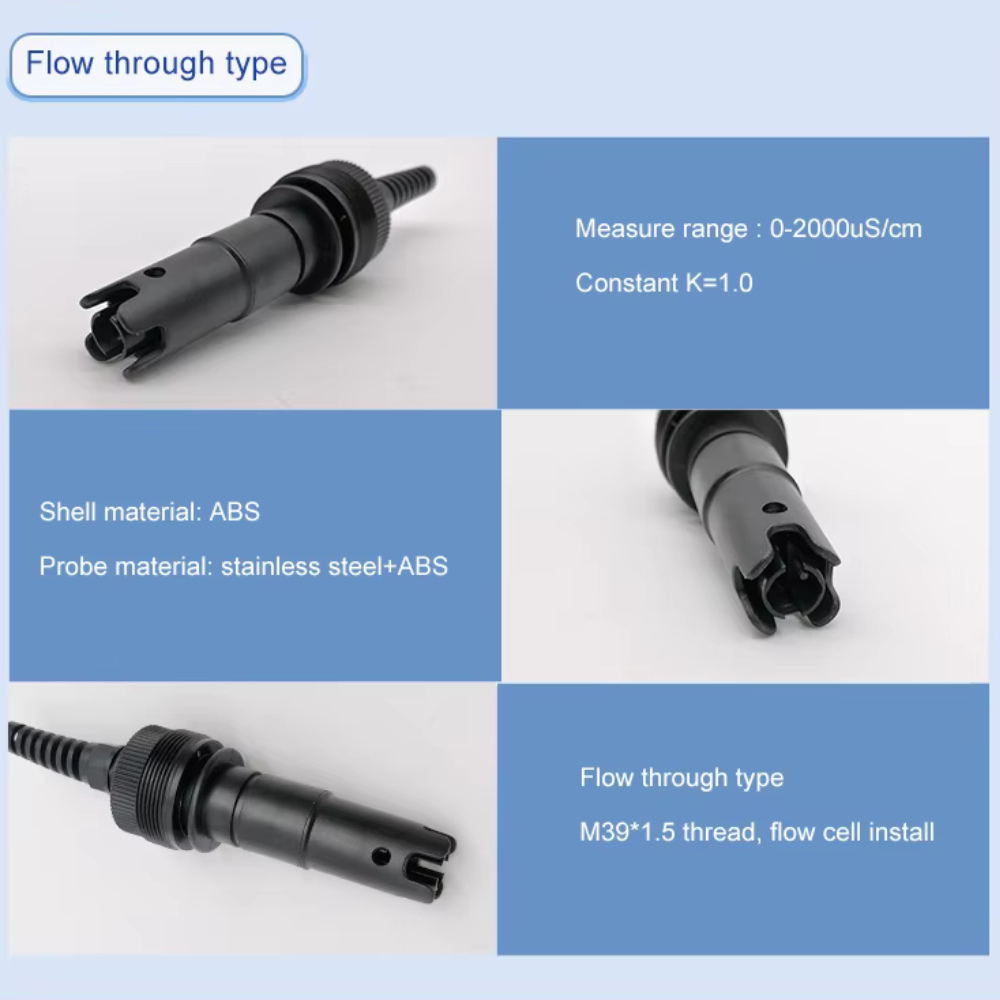

| Install | Immersion type or flow through type |
| Pressure range | 0-4bar |
| Temperature sensor | NTC10K (optional PT100, PT1000) |
| Shell material | PPS, ABS |

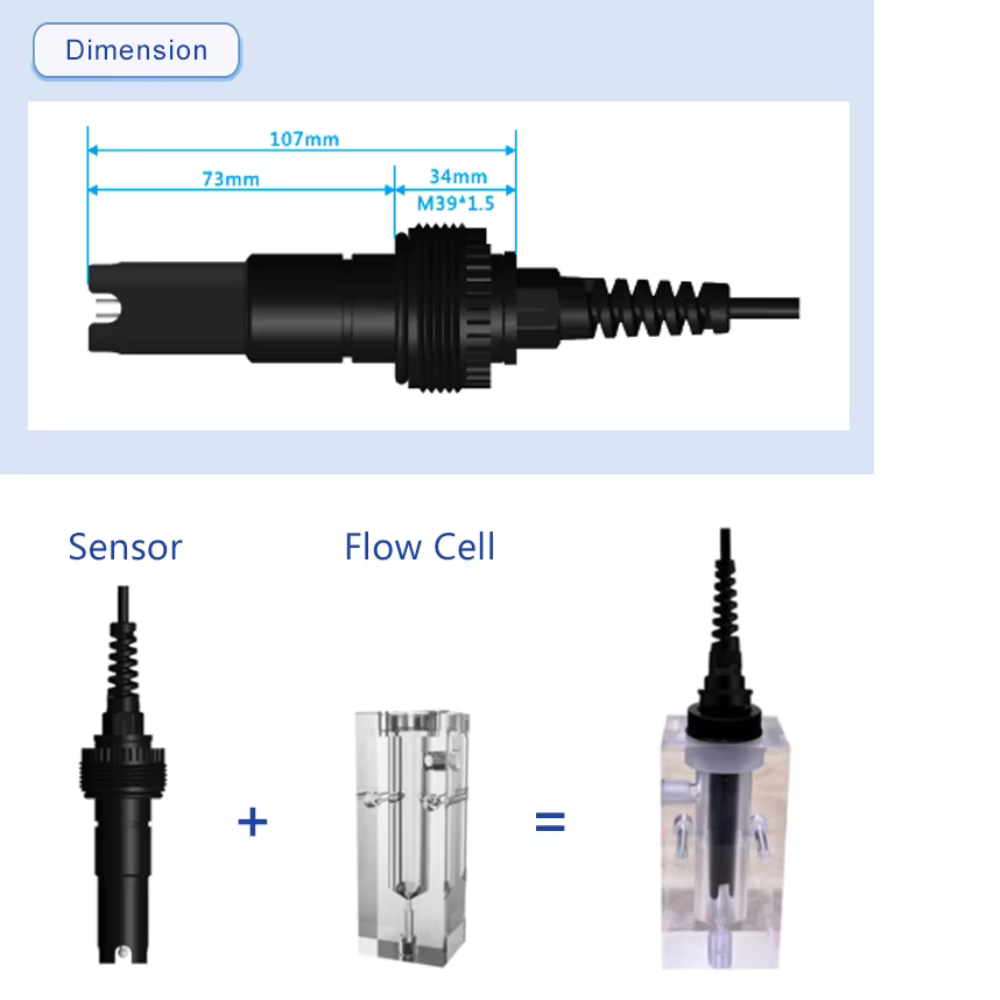

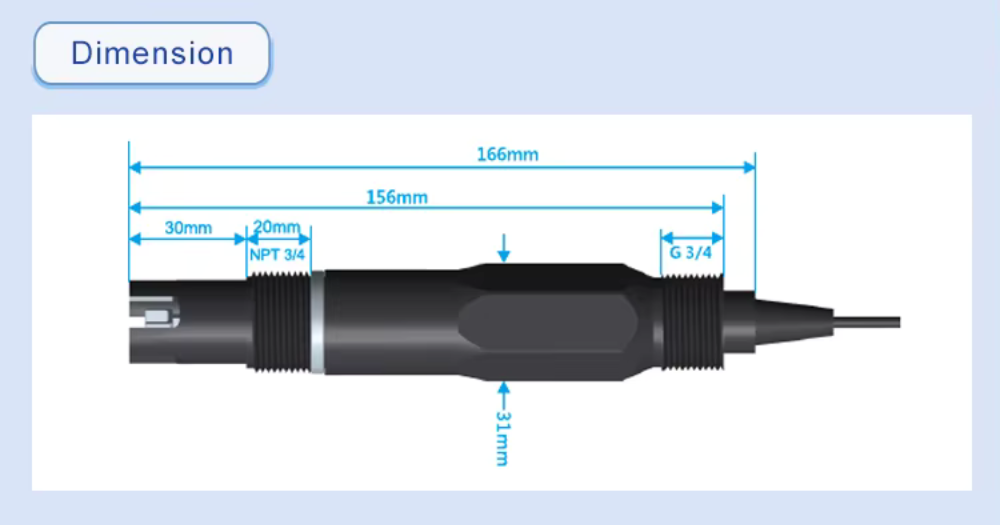

| Thread | G3/4, NPT3/4, M39*1.5 |
| Cable length | 5m |
| Protection grade | IP68 |
