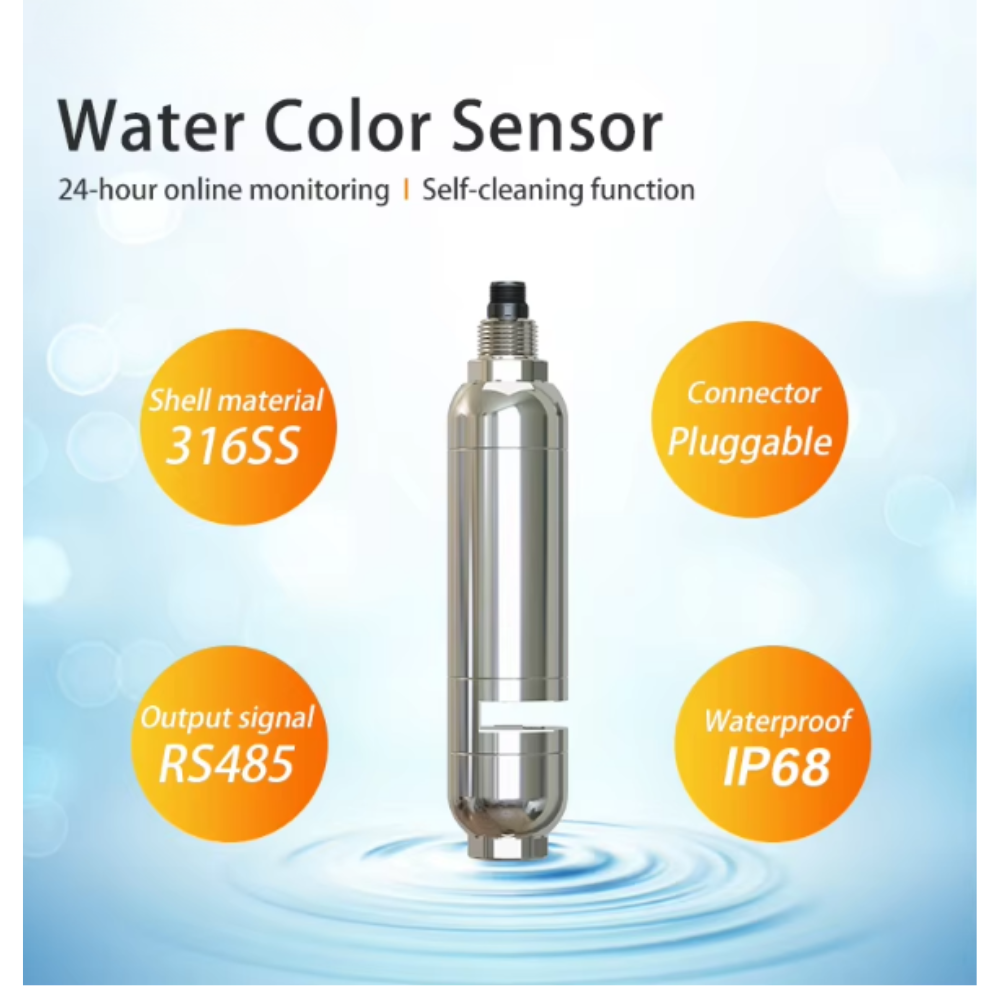

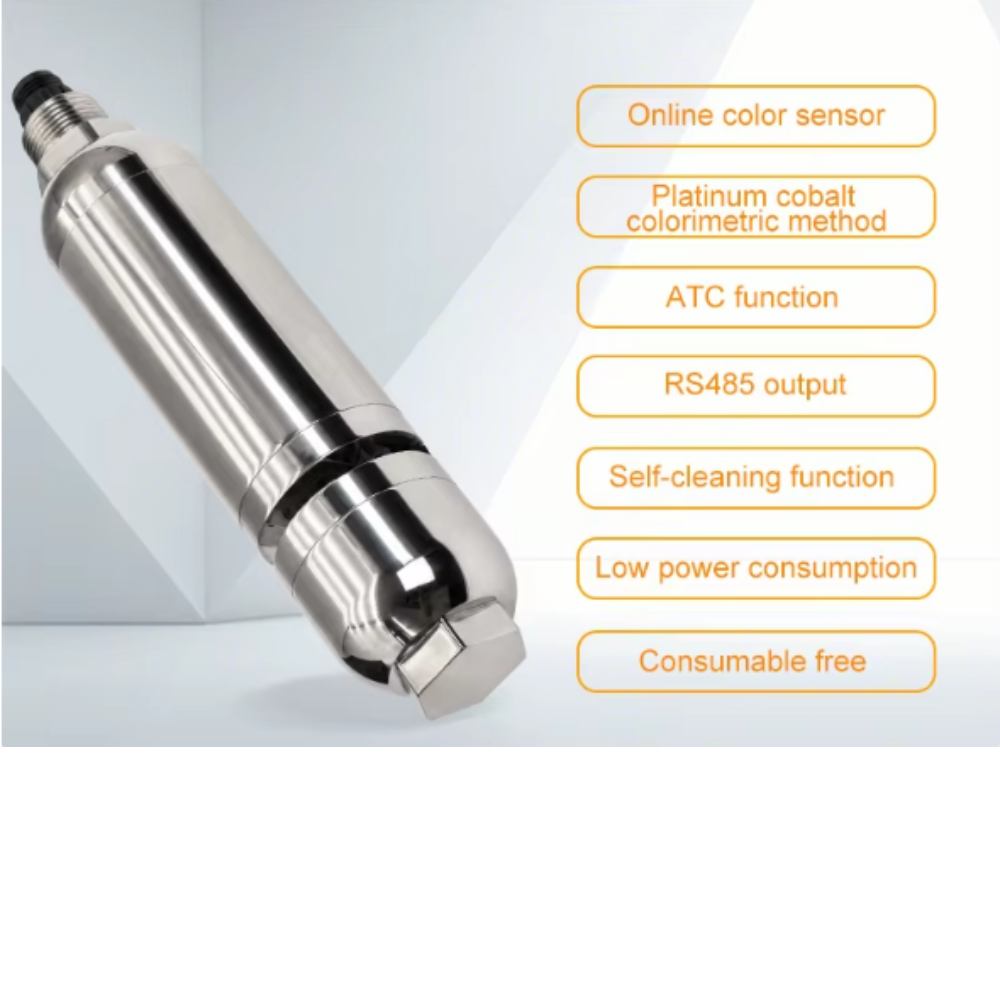

REMOND Self-cleaning Water Color Sensor
Short Description
-
IP68 Protection: Ensures robust performance in harsh environments.
-
±5.0%FS Accuracy: Precise measurement for reliable water treatment analysis.
-
RS485 Output: Reliable communication for remote monitoring.
-
Easy installation and simple calibration, convenient for on-site use.
-
Built-in automatic self-cleaning function, effectively avoid dirt adhesion, reduce maintenance frequency
Widely used in sewage treatment, aquaculture, tap water plant and industrial water quality monitoring.
Product Description
The platinum cobalt standard colorimetry is to use potassium chloroplatinate and chlorinated diamond to form a standard color, and perform visual colorimetry with the water sample to determine the color of the water sample. It is stipulated that the color of 1 mg of platinum and 0.5 mg of cobalt per liter of water is 1 degree, as the standard chromaticity unit.
| Model: RMD-ISSDC205 | |
| Principle : | Platinum cobalt colorimetry |
| Measure Range : | 0...500PCU |
| Accuracy : | ±5%FS |
| Resolution : | 0.01PCU |
| Temp Range : | 0...60°C |
| Pressure Range : | 0...3bar |
| Power Supply : | DC12...24V |
| Output Signal : | RS485, 4-20mA (customize) |
| Calibration Method : | Two-point calibration |
| Temp Compensation : | Automatic |
| Shell Material : | 316SS |
| Thread : | NPT3/4 |
| Cable Length : | 5m or customize |
| Install : | Flow through type |
| Protection Grade : | IP68 |
