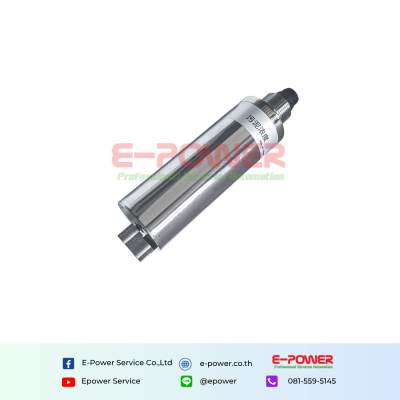

REMOND Stainless Steel RS485/4-20mA Sludge Concentration Sensor 0-30000mg
Short Description
The MLSS / TSS sensor adopts the principle of 90° scattered light.The infrared light sent by the transmitter on the sensor is absorbed, reflected and scattered by the measured object during the transmission process, and only a small part of the light can irradiate the detector. The concentration of the measured sewage has a certain relationship, so the concentration of the sewage can be calculated by measuring the transmittance of the transmitted light.
Brands: Remond
Product description
Product Description
- 90° scattered light principle
- Power supply DC9-30V
- 4-20mA output signal
- Support RS-485, Modbus/RTU protocol
- IP68 protection, waterproof
- Quick response, high precision
- 7*24 hours continuous monitoring
- Easy installation and easy operation
- Different measuring range can meet different requirements
| TSS / MLSS Sensor Specification | |
| Model : | RMD-ISSN-BR |
| Measuring Range : | 0...30000mg/L |
| Power Supply : | DC12V, DC24V |
| Output Signal : | RS485, 4-20mA |
| Principle : | 90° Scattered Light |
| Material : | Stainless Steel |
| Accuracy : | ±5.0%FS |

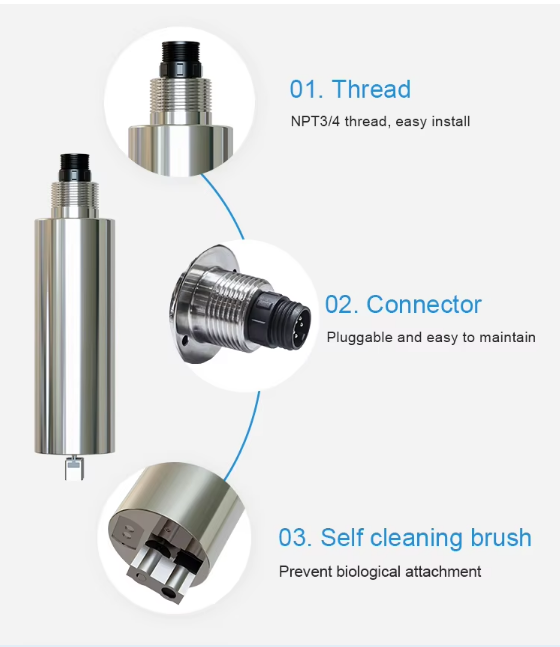

| Thread : | NPT3/4 |
| Install : | Immersion type (avoid light) |
| Cable Length : | 5m or customize |
| Protection Grade : | IP68 |
