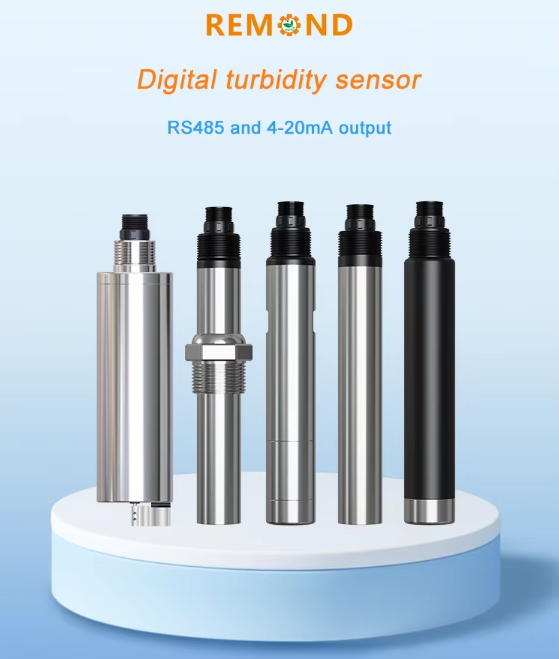

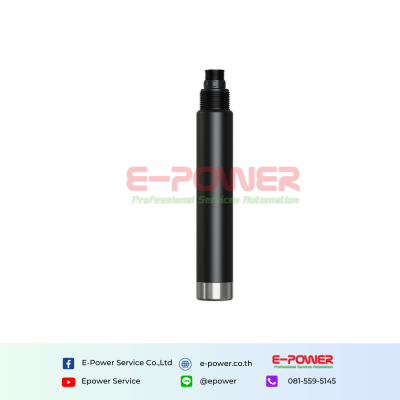

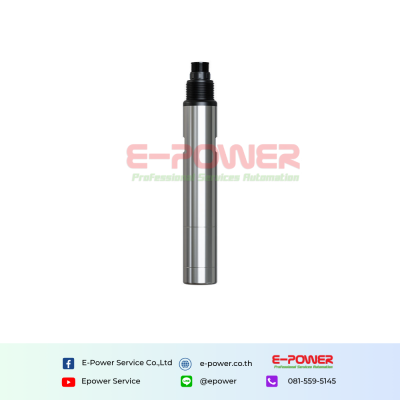

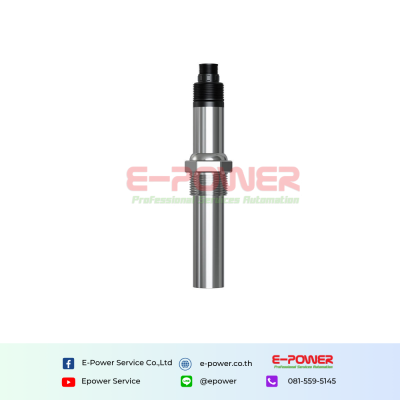

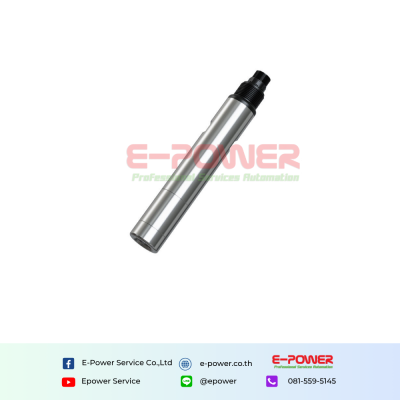

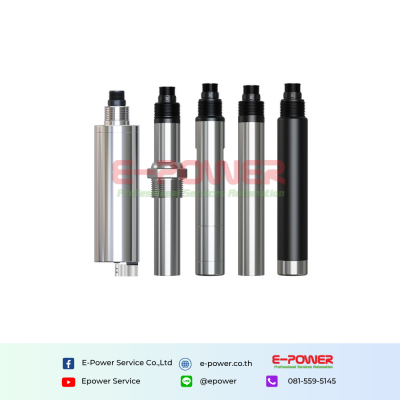

REMOND Water Turbidity Sensor RS485 Digital Online
Short Description
The turbidity sensor adopts the principle of 90° scattered light.The infrared light sent by the transmitter on the sensor is absorbed, reflected and scattered by the measured object during the transmission process, and only a small part of the light can irradiate the detector. The concentration of the measured sewage has a certain relationship, so the concentration of the sewage can be calculated by measuring the transmittance of the transmitted light.
Brands: Remond
Product description
Product Description
- Power supply DC9-30V
- 4-20mA output signal
- Support RS-485, Modbus/RTU protocol
- IP68 protection, waterproof
- Quick response, high precision
- 7*24 hours online continuous monitoring
- Easy installation and easy operation
- Different measuring range can meet different requirements
| Water Turbidity Sensor Specification | |||
| Model | RMD-ISST-BR105 | RMD-ISST-X2 | RMD-ISST-X3 |
| Measuring Range | 0...100NTU; 0...4000NTU | 0...4000NTU | 0...4000NTU |
| Principle | 90° Scattered Light | 90° Scattered Light | 90° Scattered Light |
| Accuracy | ±5%FS | ±5%FS | ±5%FS |
| Resolution | 0.01 | 0.01 | 0.01 |
| Temperature Range | 0...60°C | 0...60°C | 0...60°C |
| Calibration Method | Formazin Solution | Formazin Solution | Formazin Solution |
| Power Supply | DC12...24V | DC12V or DC24V | DC12V or DC24V |
| Output Signal | RS485, 4-20mA (customize) | RS485, 4-20mA (customize) | RS485, 4-20mA (customize) |
| Shell Material | SS 316 | SS 316 | SS 316 |
| Pressure Range | 0...3bar | 0...3bar | 0...3bar |
| Thread | NPT3/4 | G3/4, G1 | G3/4 |
| Electrical Connection | Pin type | Pin type | Pin type |
| Self-cleaning Function | Yes | No | No |
| Installation | Immersion type | Immersion type | Immersion type |
| Cable Length | 5m or customize | 5m or customize | 5m or customize |
| Protection Grade | IP68 | IP68 | IP68 |
