REMOND Industrial Online RS485 pH Probe 4-20mA PPS Shell pH Electrode Water Treatment ph Sensor Probe
Short Description
-
pH refers to the acidity or alkalinity of an aqueous solution, specifically the concentration of hydrogen ions. The value varies from 0 to 14. Less than 7 is acidic, greater than 7 is alkaline, and equal to 7 is neutral.
pH sensor is a sensor used to detect the concentration of hydrogen ions in the measured substance and convert it into a corresponding usable output signal.
A pH sensor typically consists of a chemical component and a signal transmission component. PH sensors are commonly used for industrial measurements of substances such as solutions and water.
Brands: Remond
Product description
Product Description
- Power supply DC9-30V
- 4-20mA output signal
- Support RS-485, Modbus/RTU protocol
- IP68 protection, waterproof
- Quick response, high precision
- 7*24 hours online continuous monitoring
- Easy installation and easy operation
- Different measuring range can meet different requirements
| pH sensor technical parameter: | |
| Model | RMD-TSHP105 |
| pH Measuring range : | 0...14pH |
| Resolution : | 0.01pH |
| Accuracy : | ±0.02pH |
| Temp measure range : | 0...60°C |
| Resolution : | 0.1°C |
| Accuracy : | ±0.3°C |
| Temperature compensation : | Automatic |
| Power supply : | DC9-30V |
| Output : | 4-20mA |
| Pressure range : | 0-3bar |
| Data communication : | RS485 (MODBUS-RTU) |

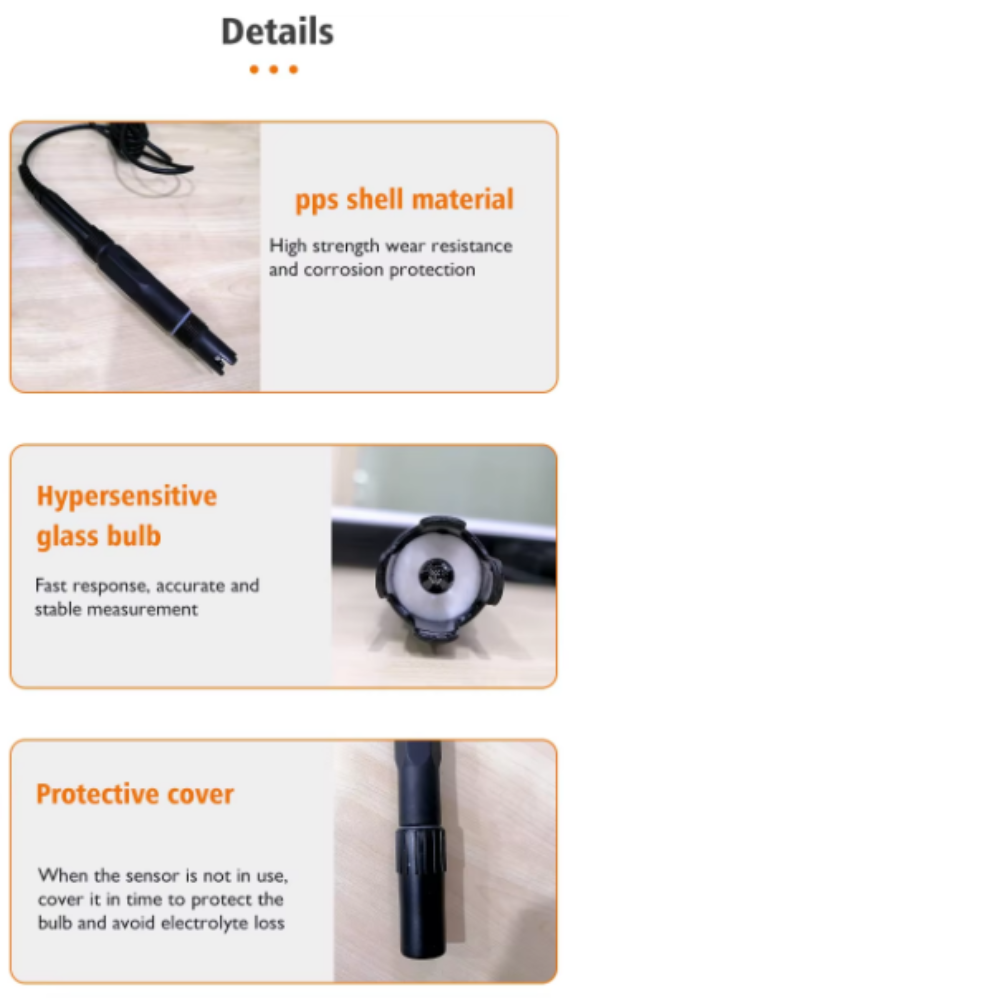

| Shell material : | PPS |

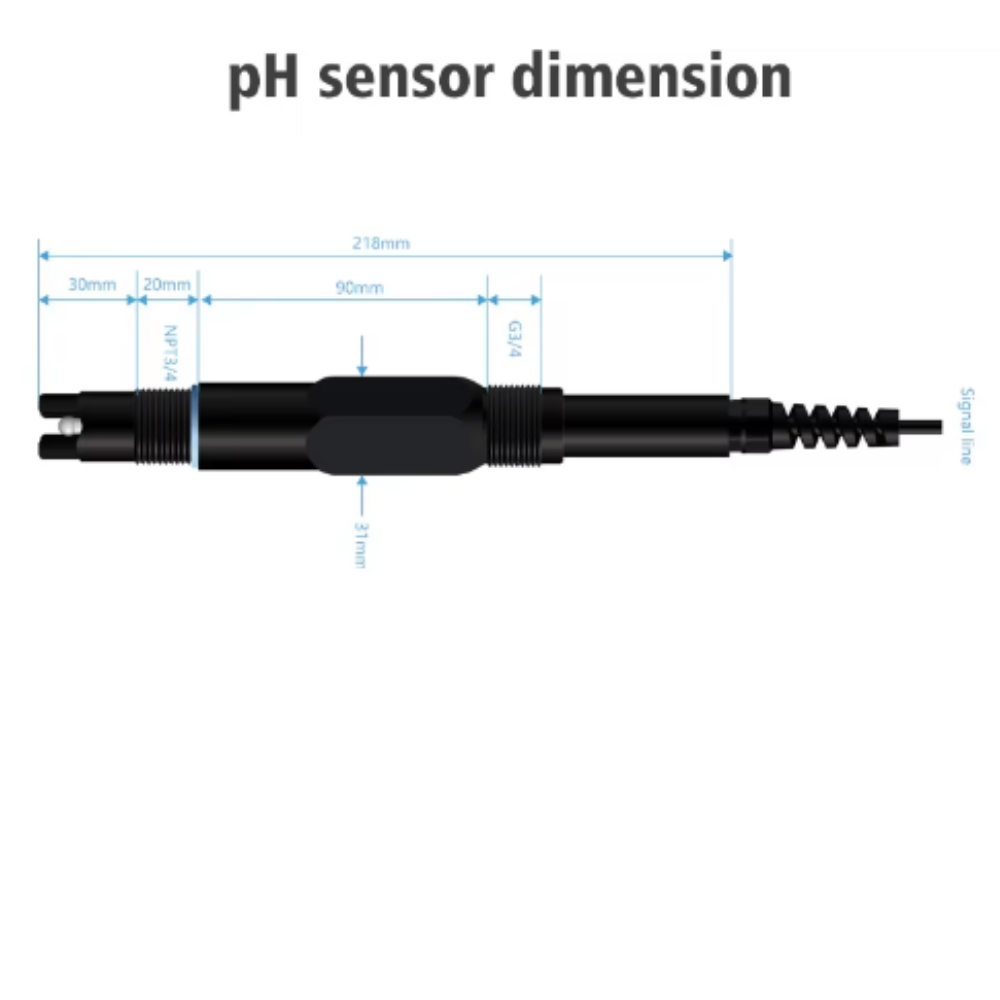

| Thread : | G3/4, NPT3/4 |
| Cable length : | 5m default |
| Install : | Immersion type |
