REMOND Industrial RS485 Chromaticity Sensor Online
Short Description

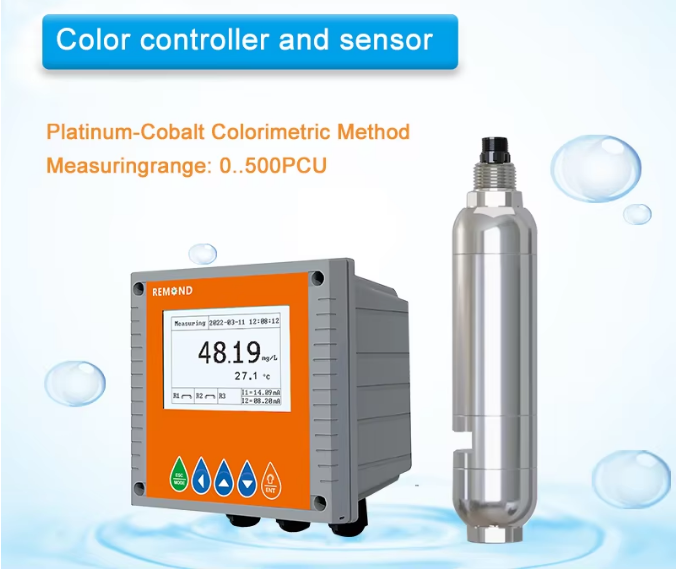

RS485 Chromaticity Sensor Online Platinum-Cobalt Colorimetric Method Water Color Sensor Probe for Drinking Water
Brands: Remond
Product description
Product Description
| Color meter technical data | |
| Measuring range | 0-500PCU |
| Resolution | According to the sensor |
| Accuracy | According to the sensor |
| Temp. compensation | Automatic |
| Temp. range | 0 to 50.0°C |
| Ambient temperature range | 0 to +70°C |
| Storage temp | -20 to +70°C |
| Display | Back light, dot matrix |
| Measure value current output1 | Isolated, 4 to 20mA output, max. load 500Ω |
| Temp. current output 2 | Isolated, 4 to 20mA output, max. load 500Ω |
| Current output accuracy | ±0.05 mA |
| RS485 | Mod bus RTU protocol |
| Baud rate | 2400/4800/9600/19200/38400/57600/115200 |
| Maximum relay contacts capacity | 5A/250VAC, 5A/30VDC |
| Relay delay | 0-120 seconds |
| Language selection | English/traditional Chinese/simplified Chinese |
| Waterproof grade | IP65 |
| Power supply | From 90 to 260 VAC, power consumption < 7 watts |
| Installation | panel/wall/pipe installation |
