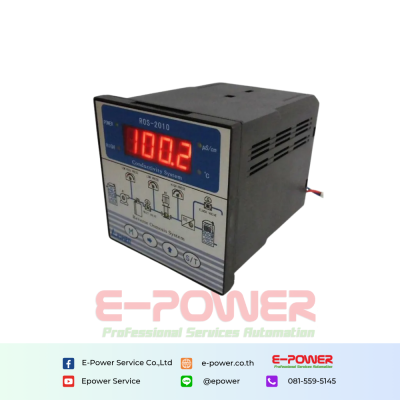

ROS-2010 RO Program online controller
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Short Description:
Conductivity + Temperature Reverse osmosis process controller.
The typical operation modes of various medium and small reverse osmosis systems, adopts high-performance single chip microcomputer technology to monitor RO system operation, status control and water online conductivity.
The control panel visually displays the operation status of the system by visual flow chart with LED indication lamp embedded.
Open operating menu, allow the user to set the washing time of membrane,spacing to meet the users different requirements.
Fault alarm and control output instruction function.
Main Technique Specifications
| Model | ROS-2010 |
| RO collecting point | No water protection, low pressure protection, high pressure protection, pure water tank high level protection, exterior operation, reset |
| RO controlling point | Inlet water valve, flush valve,raw water pump, high pressure pump, conductivity over limit discharge valve |
| Measurement Range | Conductivity : 0 ~ 20ΞS/cm, 0 ~ 200ΞS/cm, 0 ~ 2000ΞS/cm, Temperature: 0~50°C |
| Resolution ratio | Conductivity 0.1ΞS/cm, Temperature 0.1°C |
| Accuracy | Conductivity 1.5%, Temperature 0.5°C |
| Temperature compensation | automatic digital compensation with 25°C as reference temperature |
| Working environment | Ambient Temp. 0 ~ 50°C, Relative Humidity 85% |

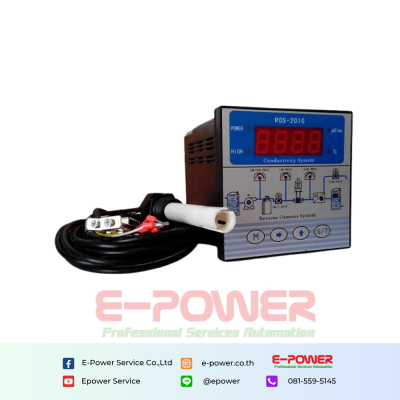

| Electrode | 1.0cm-1 electrode, with 5m Length cable |
| Electric control | ON single contact relay, dry contact (on power) inside output |
| Flush way | High pressure flush, low pressure flush |
| Display | 3 1/2 digits red LED digital display |
| Contact capacity | AC 250V/3A MaxïžAC 115V/10A Max (Resistance load) |
| Power | AC 220V+-15% 50Hz |
| Dimensions | 96Ã96Ã130mm (H X W X D) |
| Hole size | 92Ã92mm (H X W)(Embedded) |
