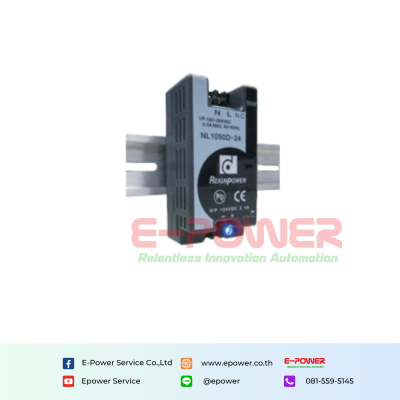

ReignPower NL1050D Series AC-DC Switching Power Supply
Product description
Download
GENERAL SPECIFICATIONS
Input
Input range : 180~264VAC / 200~380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 0.6A/80A@220VAC
Output
Hold-up time : 13ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
40-50 Watts
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| NL1040D-12 | V : +12V ±10% | 0A | 3.33A | 3.33A | 120mV | ±1% | ±1% | 85% Ref. | 17.1 ~ 18.9V |
| NL1050D-24 | V : +24V ±10% | 0A | 2.1A | 2.1A | 240mV | ±1% | ±1% | 87% Ref. | 31.4 ~ 34.7V |
