GENERAL SPECIFICATIONS
Input
Input range : 90~132 / 180~264VAC, 220-380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 2.03A/20A@110VAC / 1.06A/40A@220VAC
Output
Hold-up time : 13ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
100 Watts
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| LP1100D-12M | V : +12V ±10% | 0A | 8.3A | 8.3A | 120mV | ±1% | ±1% | 85% Ref | 17.1 ~ 18.9V |
| LP1100D-24M | V : +24V ±10% | 0A | 4.2A | 4.2A | 240mV | ±1% | ±1% | 86% Ref | 31.4 ~ 34.7V |
| LP1100D-48M | V : +48V ±10% | 0A | 2.1A | 2.1A | 480mV | ±1% | ±1% | 87% Ref. | 64.6 ~ 71.4V |
| LP2100D3M | V1 : +24V ±10% V2 : +12V | 0A 0A | 3A 1.5A | 4.2A 2.5A | 240mV 80mV | ±1% ±1% | ±1% ±1% | 86% Ref | 31.4 ~ 34.7V 15 ~ 18V |
| LP2100D4M | V1 : +12V ±10% V2 : -12V | 0A 0A | 7.65A -0.65A | 8.3A -0.65A | 120mV 80mV | ±1% ±1% | ±2% ±1% | 85% Ref | 17.1 ~ 18.9V -15 ~ -18V |
| LP2100D5M | V1 : +48V ±10% V2 : +24V | 0A 0A | 1.1A 1A | 2.1A 1A | 480mV 80mV | ±1% ±1% | ±1% ±1% | 87% Ref | 64.6 ~ 71.4V 31.4 ~ 34.7V |
| LP2100D6M | V1 : +24V ±10% V2 : -24V | 0A 0A | 3.8A -0.4A | 4.2A -0.4A | 240mV 80mV | ±1% ±1% | ±1% ±1% | 86% Ref | 31.4 ~ 34.7V 31.4 ~ -34.7V |
ReignPower
Reign
Power
Power Supply
AC-DC Switching Power Supply
LP Series

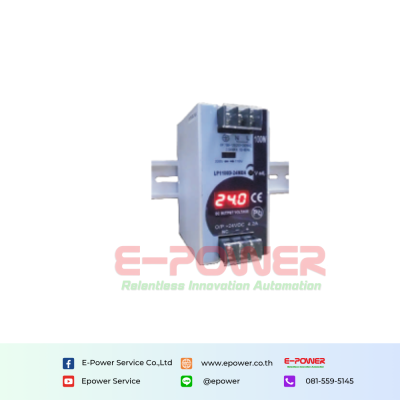

ReignPower LP1100D Series AC-DC Switching Power Supply
