GENERAL SPECIFICATIONS
Input
Input range : 90~132 / 180~264VAC (Selectable), 220-380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 20A/110VAC / 40A@220VAC
Output
Hold-up time : 10ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
350 Watts
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| LP1350D-12M | V : +12V ±10% | 0A | 29.17A | 29.17A | 120mV | ±1% | ±2% | 84% Ref. | 17.1 ~ 18.9V |
| LP1350D-24M | V : +24V ±10% | 0A | 14.6A | 14.6A | 240mV | ±1% | ±2% | 85% Ref. | 31.4 ~ 34.7V |
| LP1350D-36M | V : +36V ±10% | 0A | 9.72A | 9.72A | 360mV | ±1% | ±2% | 85% Ref. | 47.8 ~ 53.2V |
ReignPower
Reign
Power
Power Supply
AC-DC Switching Power Supply
LP Series

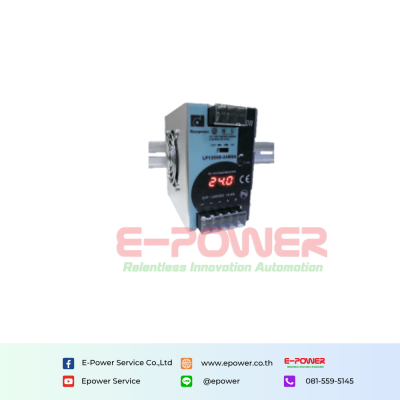

ReignPower LP1350D Series AC-DC Switching Power Supply
LP1350D Series
