GENERAL SPECIFICATIONS
Input
Input range : 90~132 / 180~264VAC (Selectable), 220-380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 9.6A/20VAC@110VAC / 5.36A/40A@220VAC
Output
Hold-up time : 13ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
500 Watts
MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
Min. | Rated | Max. | |||||||

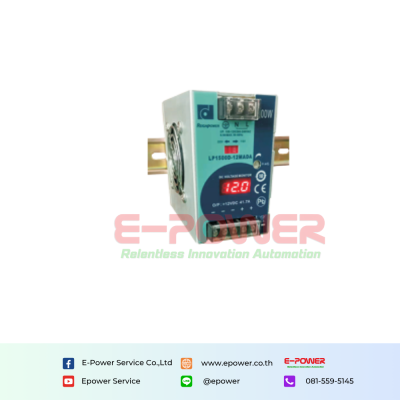

LP1500D-12MADA | V : +12V ±10% | 0A | 41.6A | 41.6A | 180mV | ±1% | ±2% | 85% Ref. | 17.1 ~ 18.6V |
LP1500D-24MADA | V : +24V ±10% | 0A | 20.8A | 20.8A | 240mV | ±1% | ±2% | 85% Ref. | 31.4 ~ 34.7V |
LP1500D-36MADA | V : +36V ±10% | 0A | 13.9A | 13.9A | 360mV | ±1% | ±2% | 85% Ref. | 47.8 ~ 53.2V |
LP1500D-48MADA | V : +48V ±10% | 0A | 10.4A | 10.4A | 480mV | ±1% | ±2% | 85% Ref. | 64.6 ~ 71.4V |
LP2500D1MA | V1 : +12V ±10% V2 : +5V | 0A 0A | 36.25A 3A | 41.7A 3A | 180mV 40mV | ±1% ±1% | ±1% ±1% | 85% Ref. | 17.1 ~ 18.9V 5.8~7.0V |
LP2500D2MA | V1 : +12V ±10% V2 : +5V | 0A 0A | 33.3A 10A | 41.7A 20A | 180mV 40mV | ±1% ±1% | ±1% ±1% | 85% Ref. | 17.1 ~ 18.9V 5.8~7.0V |
LP2500D3MA | V1 : +24V ±10% V2 : +5V | 0A 0A | 20.2A 3A | 20.8A 3A | 240mV 40mV | ±1% ±1% | ±1% ±1% | 88% Ref. | 31.4 ~ 34.7V 5.8~7.0V |
LP2500D4MA | V1 : +24V ±10% V2 : +12V | 0A 0A | 20.0A 1.7A | 20.8A 2A | 240mV 80mV | ±1% ±1% | ±1% ±1% | 88% Ref. | 31.4 ~ 34.7V 15~18V |
LP2500D5MA | V1 : +36V ±10% V2 : +12 | 0A 0A | 13.38A 1.2A | 13.9A 1.2A | 360mV 80mV | ±1% ±1% | ±1% ±1% | 85% Ref. | 47.8 ~ 53.2V 15~18V |
LP2500D6MA | V1 : +12V ±10% V2 : -12V | 0A 0A | 36.85A -0.65A | 41A -0.65A | 180mV 80mV | ±1% ±1% | ±1% ±1% | 85% Ref. | 17.1 ~ 18.9V -15~-18V |
LP2500D7MA | V1 : +48V ±10% V2 : +12V | 0A 0A | 10A 1.2A | 10.4A 1.2A | 180mV 80mV | ±1% ±1% | ±2% ±1% | 88% Ref. | 64.6 ~ 71.4V 15~18V |
