GENERAL SPECIFICATIONS
Input (Voltage Display)
Input range : 90~264VAC / 120~380VAC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 2.7A/20A@110VAC / 1.33A/40A@220VAC
Power factor : 95% Min.
Input (Smart Alert)
Input range : 90~264VAC / 120~380VAC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 2.7A/20A@110VAC / 1.33A/40A@220VAC
Power factor : 95% Min.
Output (Voltage Display & Smart Alert
Hold-up time : 16ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
240 Watts (Display Voltage)
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| RPH1240D-24CENDA | V : +24V ±10% | 0A | 10A | 10A | 240mV | ±1% | ±1% | 91% Ref. | 31.4 ~ 34.7V |
| RPH1240D-36CENDA | V : +36V ±10% | 0A | 6.7A | 6.7A | 360mV | ±1% | ±1% | 92% Ref. | 47.8 ~ 53.2V |
| RPH1240D-48CENDA | V : +48V ±10% | 0A | 5A | 5A | 480mV | ±1% | ±1% | 91% Ref. | 64.6 ~ 71.4V |
240 Watts (Smart Alert)
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| RPH1240D-24CED | V : +24V ±10% | 0A | 10A | 10A | 240mV | ±1% | ±1% | 91% Ref. | 31.4 ~ 34.7V |
| RPH1240D-36CED | V : +36V ±10% | 0A | 6.7A | 6.7A | 360mV | ±1% | ±1% | 92% Ref. | 47.8 ~ 53.2V |
| RPH1240D-48CED | V : +48V ±10% | 0A | 5A | 5A | 480mV | ±1% | ±1% | 91% Ref. | 64.6 ~ 71.4V |
ReignPower
Reign
Power
Power Supply
AC-DC Switching Power Supply
RPH Series

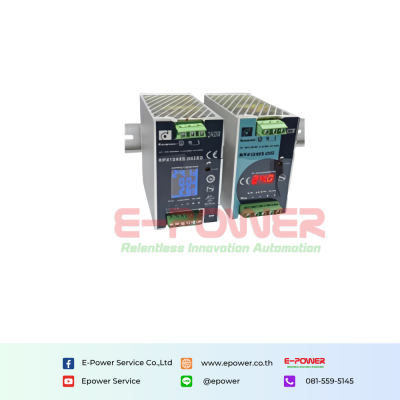

ReignPower RPH1240D Series Voltage Display and Smart Alert
