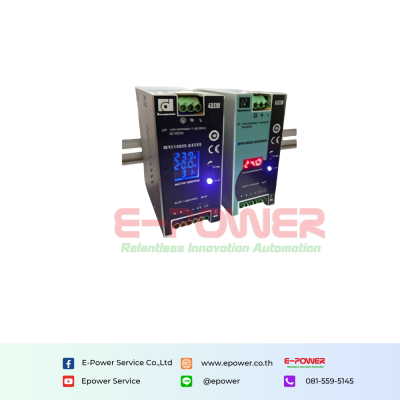

ReignPower RPH1480D Series Voltage Display and Smart Alert

Categories : Power Supply , Reignpower , RPH Series High Perf. Smart Din Rail Power Supply

Brands :ReignPower

Product description

Download

GENERAL SPECIFICATIONS

Input (Voltage Display)

Input range : 90~264VAC / 120~380VAC

Input frequency : 47~63Hz

Max. I/P current / Inrush current (25°C) : 5.3A/20A@110VAC / 2.35A/40A@220VAC

Power factor : 95% Min.

Input (Smart Alert)

Input range : 90~264VAC / 120~380VAC

Input frequency : 47~63Hz

Max. I/P current / Inrush current (25°C) : 5.3 A/20A@110VAC / 2.35A/40A@220VAC

Power factor : 95% Min.

Output (Voltage Display & Smart Alert

Hold-up time : 16ms

Short protection : Re-power on to recover

Over load protection : Short-circuit protection

DETAIL SPECIFICATIONS

480 Watts (Display Voltage)

MODEL	O/P Volt Adj. %	Load(Current)			Ripple & Noise	Line REG.	Load REG	Efficiency	O.V.P
MODEL	O/P Volt Adj. %	Min.	Rated	Max.	Ripple & Noise	Line REG.	Load REG	Efficiency	O.V.P
RPH1480D-24CENDA	V : +24V ±10%	0A	20A	20A	240mV	±1%	±1%	94% Ref.	31.4 ~ 34.7V
RPH1480D-36CENDA	V : +36V ±10%	0A	13.3A	13.3A	360mV	±1%	±1%	94% Ref.	47.8 ~ 53.2V
RPH1480D-48CENDA	V : +48V ±10%	0A	10A	10A	480mV	±1%	±1%	94% Ref.	64.6 ~ 71.4V
RPH1480D-110CENDA	V : +110V ±10%	0A	4.36A	4.36A	1100mV	±1%	±1%	94% Ref.	150 ~ 175V
RPH1480D-125CENDA	V : +125V ±10%	0A	3.84A	3.84A	1250mV	±1%	±1%	94% Ref.	156 ~ 175V
PH1480D-250CEN	V : +250V ±10%	0A	1.92A	1.92A	2500mV	±1%	±1%	94% Ref.	310 ~ 360V
RPH2480D1	V1 : +24V ±10% V2 : +5V	0A 0A	19.3A 3A	19.3A 3A	240mV 40mV	±1% ±1%	±1% ±1%	89% Ref.	31.4 ~ 34.7V 5.8 ~ 7.0V
RPH2480D2	V1 : +24V ±10% V2 : +12V	0A 0A	18.5A 3A	18.5A 3A	240mV 80mV	±1% ±1%	±1% ±1%	89% Ref.	31.4 ~ 34.7V 17.1 ~ 18.9V
RPH2480D3	V1 : +48V ±10% V2 : +5V	0A 0A	9.86A 1.3A	9.86A 1.3A	480mV 40mV	±1% ±1%	±1% ±1%	94% Ref.	64.6 ~ 71.4V 5.8 ~ 7.0V
RPH2480D4	V1 : +110V ±10% V2 : +5V	0A 0A	4.3A 1.3A	4.3A 1.3A	1100mV 40mV	±1% ±1%	±1% ±1%	94% Ref.	150 ~ 170V 5.8 ~ 7.0V

480 Watts (Smart Alert)

MODEL	O/P Volt Adj. %	Load(Current)			Ripple & Noise	Line REG	Load REG	Efficiency	O.V.P
MODEL	O/P Volt Adj. %	Min.	Rated	Max.	Ripple & Noise	Line REG	Load REG	Efficiency	O.V.P
RPH1480D-24CED	V : +24V ±10%	0A	10A	10A	240mV	±1%	±1%	91% Ref.	31.4 ~ 34.7V
RPH1480D-36CED	V : +36V ±10%	0A	6.7A	6.7A	360mV	±1%	±1%	92% Ref.	47.8 ~ 53.2V
RPH1480D-48CED	V : +48V ±10%	0A	5A	5A	480mV	±1%	±1%	91% Ref.	64.6 ~ 71.4V
RPH2480D1CED	V1 : +24V ±10% V2 : +5V	0A 0A	19.3A 3A	19.3A 3A	240mV 50mV	±1% ±1%	±1% ±1%	89% Ref.	31.4 ~ 34.7V 5.8 ~ 7.0V
