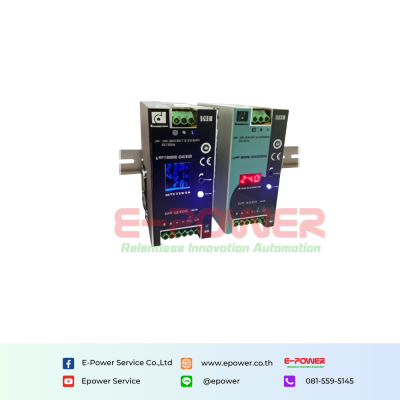

ReignPower LPF19600D Series Voltage Display and Smart Alert

Categories : Power Supply , Reignpower , RPH Series High Perf. Smart Din Rail Power Supply

Brands :ReignPower

Product description

Download

GENERAL SPECIFICATIONS

Input (Voltage Display)

Input range : 90~264VAC / 120~380VAC

Input frequency : 47~63Hz

Max. I/P current / Inrush current (25°C) : 11.20A/20A@110VAC / 5.21A/40A@220VAC

Power factor : 95% Min.

Input (Smart Alert)

Input range : 90~264VAC / 120~380VAC

Input frequency : 47~63Hz

Max. I/P current / Inrush current (25°C) : 11.20 A/20A@110VAC / 5.21A/40A@220VAC

Power factor : 95% Min.

Output (Voltage Display & Smart Alert

Hold-up time : 16ms

Short protection : Re-power on to recover

Over load protection : Short-circuit protection

DETAIL SPECIFICATIONS

750 ~ 960 Watts (Display Voltage)

MODEL	O/P Volt Adj. %	Load(Current)			Ripple & Noise	Line REG.	Load REG	Efficiency	O.V.P
MODEL	O/P Volt Adj. %	Min.	Rated	Max.	Ripple & Noise	Line REG.	Load REG	Efficiency	O.V.P
LPF1750D-12CENDA	V : +12V ±10%	0A	62.5A	62.5A	150mV	±1%	±1%	88% Ref.	17.1 ~ 18.9V
LPF1960D-24CENDA	V : +24V ±10%	0A	40A	40A	240mV	±1%	±1%	91% Ref.	31.4 ~ 34.7V
LPF1960D-36CENDA	V : +36V ±10%	0A	26.6A	26.6A	360mV	±1%	±1%	92% Ref.	47.8 ~ 53.2V
LPF1960D-48CENDA	V : +48V ±10%	0A	20A	20A	480mV	±1%	±1%	92% Ref.	64.6 ~ 71.4V
LPF1960D-72CENDA	V : +72V ±10%	0A	13.3A	13.3A	720mV	±1%	±1%	92% Ref.	84 ~ 90V
LPF1960D-110CENDA	V : +110V ±10%	0A	8.73A	8.73A	1100mV	±1%	±1%	92% Ref.	150 ~ 175V
LPF1960D-250CEN	V : +250V ±10%	0A	3.84A	3.84A	2500mV	±1%	±1%	92% Ref.	310 ~ 360V
LPF2960D1	V1 :+24V ±10% V2 : +5V	0A 0A	39.37A 3A	39.37A 3A	240mV 40mV	±1% ±1%	±1% ±1%	91% Ref.	31.4 ~ 34.7V 5.8 ~ 7.0V
LPF2960D2	V1 :+36V ±10% V2 : +5V	0A 0A	26.48A 1.3A	26.48A 1.3A	360mV 40mV	±1% ±1%	±1% ±1%	92% Ref.	47.8 ~ 53.2V 5.8 ~ 7.0V
LPF2960D3	V1 :+48V ±10% V2 : +5V	0A 0A	19.86A 1.3A	19.86A 1.3A	480mV 40mV	±1% ±1%	±1% ±1%	92% Ref.	64.6 ~ 71.4V 5.8 ~ 7.0V
LPF2960D4	V1 :+72V ±10% V2 : +5V	0A 0A	13.24A 1.3A	13.24A 1.3A	720mV 40mV	±1% ±1%	±2% ±1%	92% Ref.	84 ~ 90V 5.8 ~ 7.0V
LPF2960D5	V1 :+110V ±10% V2 : +5V	0A 0A	8.66A 1.3A	8.66A 1.3A	1100mV 40mV	±1% ±1%	±1% ±1%	92% Ref.	150 ~ 175V 5.8 ~ 7.0V
LPF2960D6	V1 : +24V ±10% V2 : +12V	0A 0A	38.5A 3A	38.5A 3A	240mV 80mV	±1% ±1%	±1% ±1%	91% Ref.	31.4 ~ 34.7V 15.3 ~ 18.9V

960 Watts (Smart Alert)

MODEL	O/P Volt Adj. %	Load(Current)			Ripple & Noise	Line REG	Load REG	Efficiency	O.V.P
MODEL	O/P Volt Adj. %	Min.	Rated	Max.	Ripple & Noise	Line REG	Load REG	Efficiency	O.V.P
LPF1960D-24CED	V : +24V ±10%	0A	40A	40A	240mV	±1%	±1%	91% Ref.	31.4 ~ 34.7V
LPF1960D-36CED	V : +36V ±10%	0A	26.6A	26.6A	360mV	±1%	±1%	92% Ref.	47.8 ~ 53.2V
LPF1960D-48CED	V : +48V ±10%	0A	20A	20A	480mV	±1%	±1%	92% Ref.	64.6 ~ 71.4V
