GENERAL SPECIFICATIONS
Input
Input range : 180~264VAC / 250~380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 10.8A/20A@220VAC
Power factor : 95% Min.
Output
Hold-up time : 10ms
Short protection : Re-power on to recover
Over load protection : Short-circuit protection
DETAIL SPECIFICATIONS
1200 ~ 2000 Watts
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| RPH11K2D-12CENDA | V : +12V | 0A | 100A | 100A | 120mV | ±1% | ±1% | 92% Ref. | 15.6 ~ 16.8V |
| RPH12K0D-24CENDA | V : +24V | 0A | 83A | 83A | 240mV | ±1% | ±1% | 93% Ref. | 31.4 ~ 34.7V |
| RPH12K0D-36CENDA | V : +36V | 0A | 55.5A | 55.5A | 360mV | ±1% | ±1% | 94% Ref. | 47.8 ~ 53.2V |
| RPH12K0D-48CENDA | V : +48V | 0A | 41.6A | 41.6A | 480mV | ±1% | ±1% | 94.5% Ref | 64.6 ~ 71.4V |
| RPH12K0D-110CENDA | V : +110V | 0A | 18.2A | 18.2A | 1100mV | ±1% | ±1% | 95% Ref. | 150 ~ 175V |
| RPH12K0D-125CENDA | V : +125V | 0A | 16A | 16A | 1250mV | ±1% | ±1% | 95% Ref. | 156 ~ 175V |
| RPH12K0D-250CEN | V : +250V | 0A | 8A | 8A | 2500mV | ±1% | ±1% | 95% Ref. | 310 ~ 360V |
| RPH21K2D1 | V1 : +12V V2 : +5V | 0A 0A | 98A 3A | 98A 3A | 120mV 40mV | ±1% ±1% | ±1% ±1% | 92% Ref. | 15.6 ~ 16.8V 5.8 ~ 7.0V |
| RPH22K0D1 | V1 : +24V V2 : +5V | 0A 0A | 82A 3A | 82A 3A | 240mV 40mV | ±1% ±1% | ±1% ±1% | 92% Ref. | 31.4 ~ 34.7V 5.8 ~ 7.0V |
| RPH22K0D2 | V1 : +24V V2 : +12V | 0A 0A | 81A 3A | 81A 3A | 240mV 80mV | ±1% ±1% | ±1% ±1% | 92% Ref. | 31.4 ~ 34.7V 17.1 ~ 18.9V |
| RPH22K0D3 | V1 : +36V V2 : +5V | 0A 0A | 55A 3A | 55A 3A | 360mV 40mV | ±1% ±1% | ±1% ±1% | 92.5% Ref. | 47.8 ~ 53.2V 5.8 ~ 7.0V |
| RPH22K0D4 | V1 : +36V V2 : +12V | 0A 0A | 54A 3A | 54A 3A | 240mV 80mV | ±1% ±1% | ±1% ±1% | 92.5% Ref. | 47.8 ~ 53.2V 17.1 ~ 18.9V |
ReignPower
Reign
Power
Power Supply
AC-DC Switching Power Supply

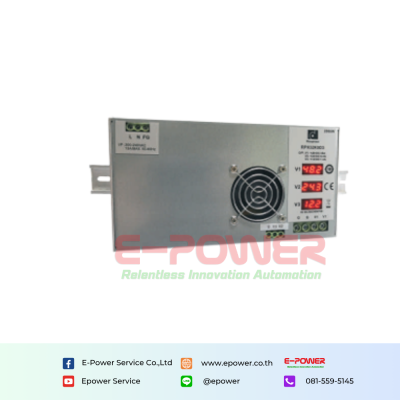

ReignPower RPH12K0D Series AC - DC Switching Power Supply
