GENERAL SPECIFICATIONS
Input
Input range : 90~264VAC / 120~380VDC
Input frequency : 47~63Hz
Max. I/P current / Inrush current (25°C) : 2.63A/35A@110VAC / 1.13A/70A@220VAC
Output
Hold-up time : 13ms
Short protection : Autorecovery
Over load protection : Automatic power limited
DETAIL SPECIFICATIONS
200~220 Watts
| MODEL | O/P Volt Adj. % | Load(Current) | Ripple & Noise | Line REG. | Load REG | Efficiency | O.V.P | ||
| Min. | Rated | Max. | |||||||
| DLP1200D-12C | V : +12V ±10% | 0A | 16.6A | 16.6A | 120mV | ±1% | ±1% | 88% Ref. | 17.1 ~ 18.9V |
| DLP1220D-24C | V : +24V ±10% | 0A | 9.2A | 9.2A | 240mV | ±1% | ±1% | 90% Ref. | 31.4 ~ 34.7V |
| DLP1220D-48C | V : +48V ±10% | 0A | 4.6A | 4.6A | 480mV | ±1% | ±1% | 92% Ref. | 64.6 ~ 71.4V |
ReignPower
Reign
Power
Power Supply
AC-DC Switching Power Supply
DLP Series

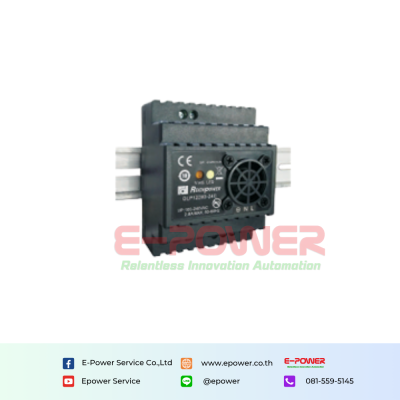

ReignPower DLP1220D Series AC - DC Switching Power Supply
DLP1220D Series
