REMOND Digital Fluorescent PTSA Tracer Sensor RS485 Online Circulating Water Tracer Detector Probe
Short Description

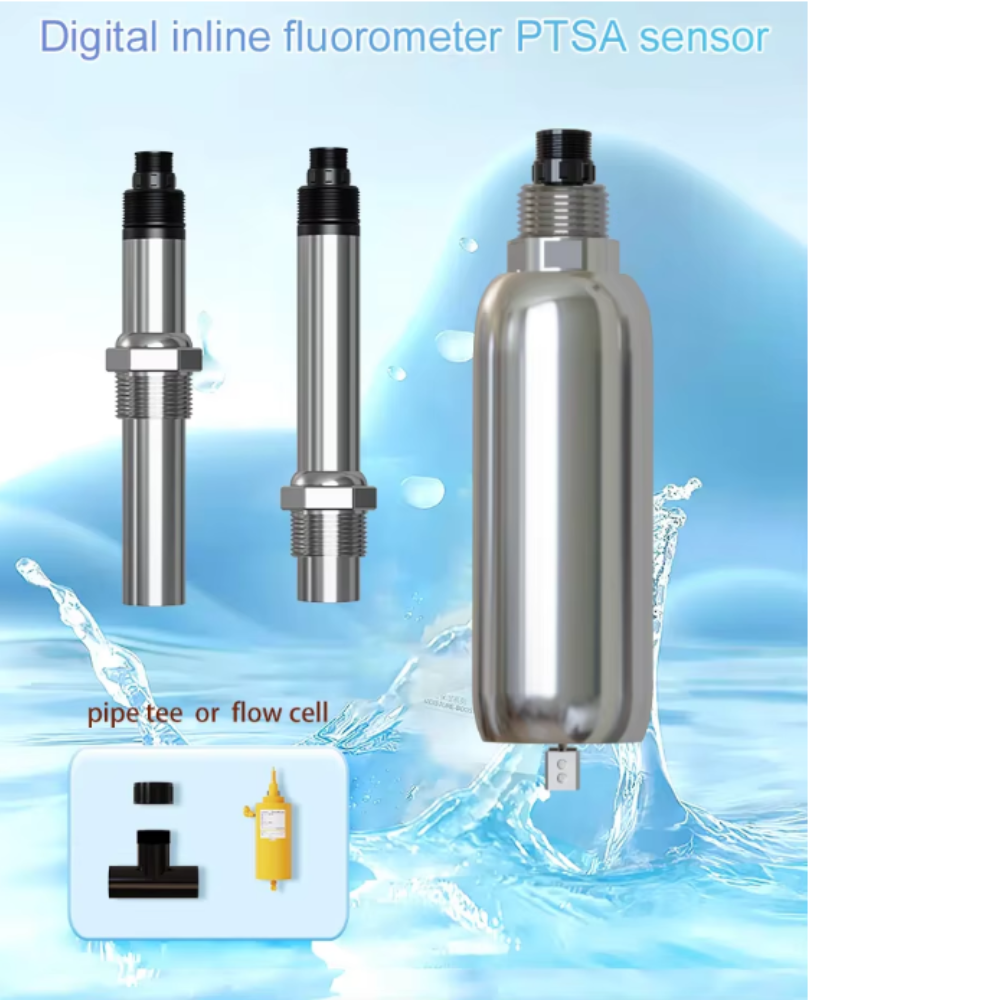

Digital Tracer Sensor Fluorescence PTSA Sensor Reagent Concentration Sensor RS485 Fluorometer PTSA Sensor for Cooling Water
Brands: Remond
Product description
Product Description
- Digital sensors, 7*24 hours online monitoring
- High precision, fast response
- No need controller and transmitter
- Built-in temperature sensor, automatic temperature compensation
- Power supply DC12V/DC24V, output signal RS485
- The sensor can be connected to a computer or PLC
- IP68 grade, waterproof
- Easy to install
| PTSA Sensor Specification | |||
| Model | RMD-ISPT-XG | RMD-ISPT-XG20 | RMD-ISPT105 |
| Principle | Fluorescence | Fluorescence | Fluorescence |
| Measuring Range | 0...200ppb, 0...500ppb | 0...200ppb, 0...500ppb | 0...200ppb, 0...500ppb |
| Accuracy | ±0.25ppb or ±5%FS | ±0.25ppb or ±5%FS | ±0.25ppb or ±5%FS |
| Resolution | 0.01ppb | 0.01ppb | 0.01ppb |
| Temperature Range | 0...60°C | 0...60°C | 0...60°C |
| Temp Compensation | Automatic | Automatic | Automatic |
| Power Supply | DC12V or DC24V | DC12V or DC24V | DC12...24V |
| Output Signal | RS485 | RS485 | RS485, 4-20mA |

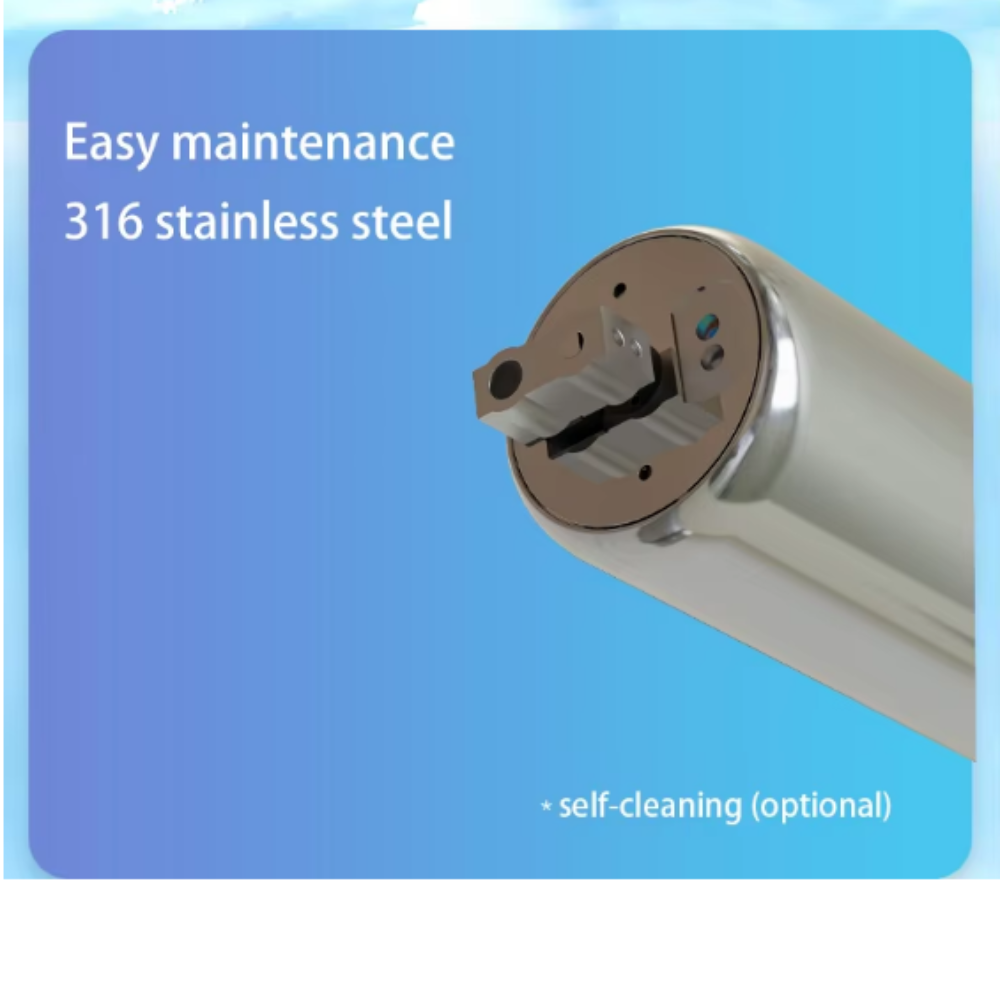

| Shell Material | SS316 | SS316 | SS316 |
| Pressure Range | 0...3bar | 0...3bar | 0...3bar |
| Thread | G3/4, G1 | G3/4, G1 | NPT3/4 |
| Self-cleaning Brush | No | No | Yes |
| Electrical Connection | Pin type | Pin type | Pin type |
| Cable Length | 5m or customize | 5m or customize | 5m or customize |
| Protection Grade | IP68 | IP68 | IP68 |
