REMOND Low Maintenance Online Water Color Sensor RS485
Short Description

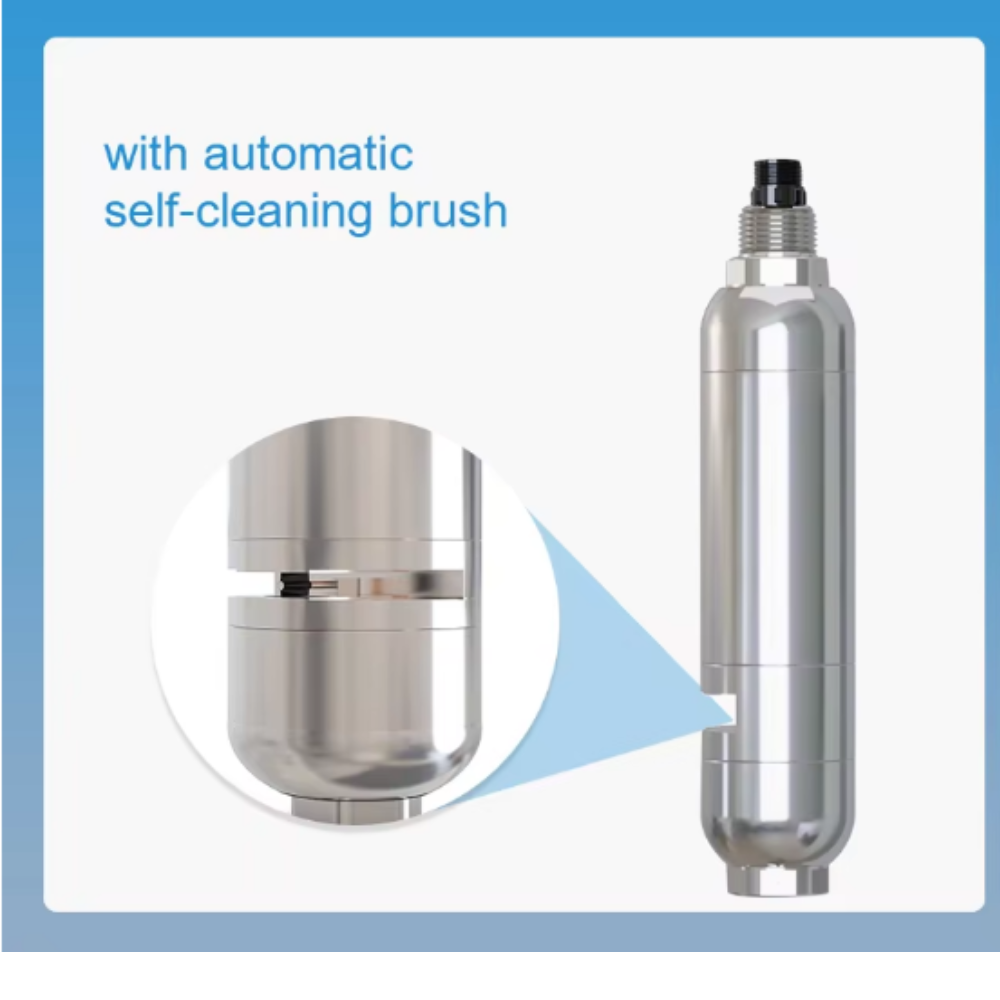

Low Maintenance Online Water Color Sensor RS485 Auto Cleaning 0-500PCU Chromaticity Sensor for Continuous Water Monitoring
Brands: Remond
Product description
Product Description
- "The Platinum-Cobalt (Pt-Co) standard colorimetry method uses potassium chloroplatinate and cobalt
- chloride to create a standard color scale for visual comparison against water samples. By regulatory
- standard, 1 degree of color (Standard Chromaticity Unit) is defined as the color produced by 1 mg of
- platinum and 0.5 mg of cobalt per liter of water."
| Model: RMD-ISSDC205 | |

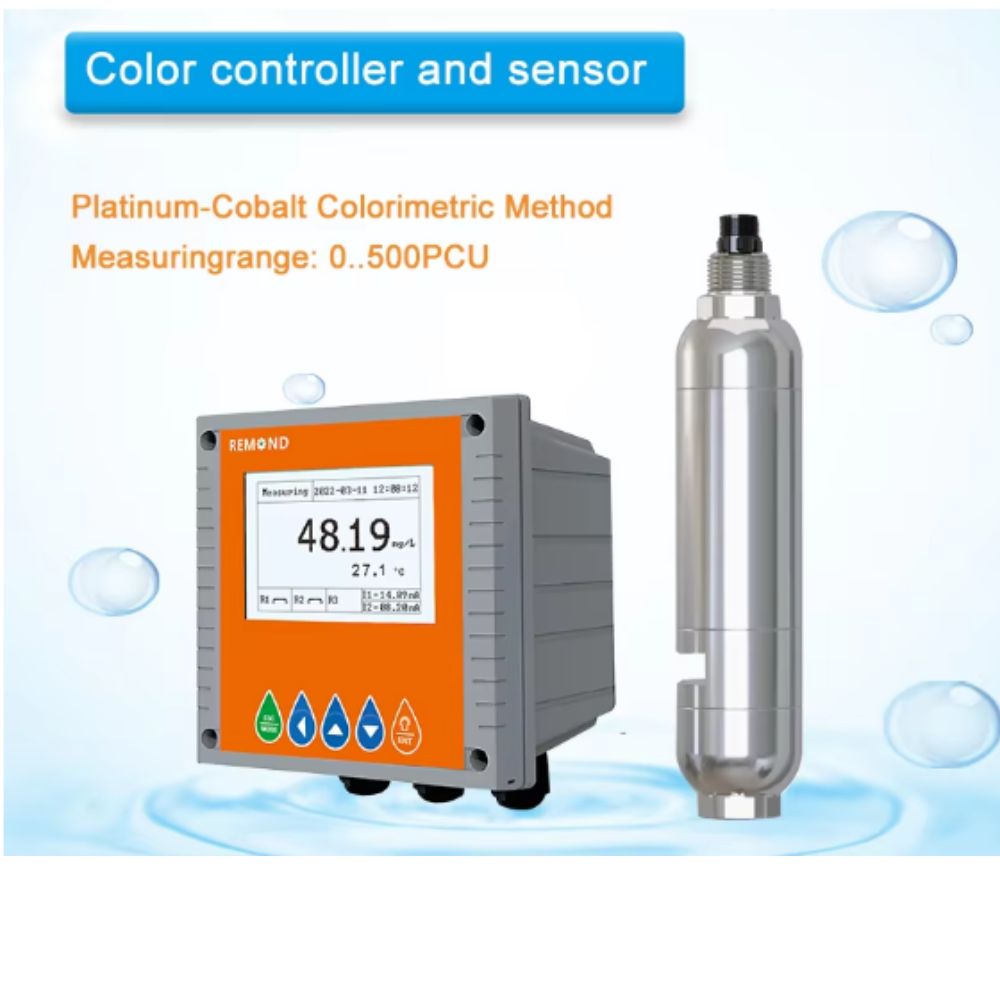

| Principle : | Platinum Cobalt Colorimetry |
| Measure Range : | 0...500PCU |
| Accuracy : | ±5%FS |
| Resolution : | 0.01PCU |
| Temp Range : | 0...60°C |
| Pressure Range : | 0...3bar |
| Power Supply : | DC12...24V |
| Output Signal : | RS485, 4-20mA (customize) |
| Calibration Method : | Two-point Calibration |
| Temp Compensation : | Automatic |
| Shell Material : | 316SS |
| Thread : | NPT3/4 |
| Cable Length : | 5m or customize |
| Install : | Flow through type |
| Protection Grade : | IP68 |
